ABL-254-24-SR41

Active

Assmann WSW Components

PIN- & FEMALE HEADER FEMALE SMT

Search across all available documentation for this part.

Active

Assmann WSW Components

PIN- & FEMALE HEADER FEMALE SMT

Technical Specifications

Parameters and characteristics for this part

Specification	ABL-254-24-SR41

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	3.81 mm
Insulation Height	0.15 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Mounting Type	Contact Material	Connector Type	Contact Type	Number of Positions	Termination	Features	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Shape	Current Rating (Amps)	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Fastening Type
Assmann WSW Components ABL-254-24-SR41	Surface Mount	Brass	Receptacle	Female Socket	24	Solder	Board Guide	Gold	105 ░C	-55 °C	UL94 V-0	All	Nylon 6T Polyamide (PA6T)	2.54 mm	0.1 in	2	Square	3 A	Black	0.1 in	2.54 mm	3.81 mm	0.15 in	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16000	$ 1.03

General part information

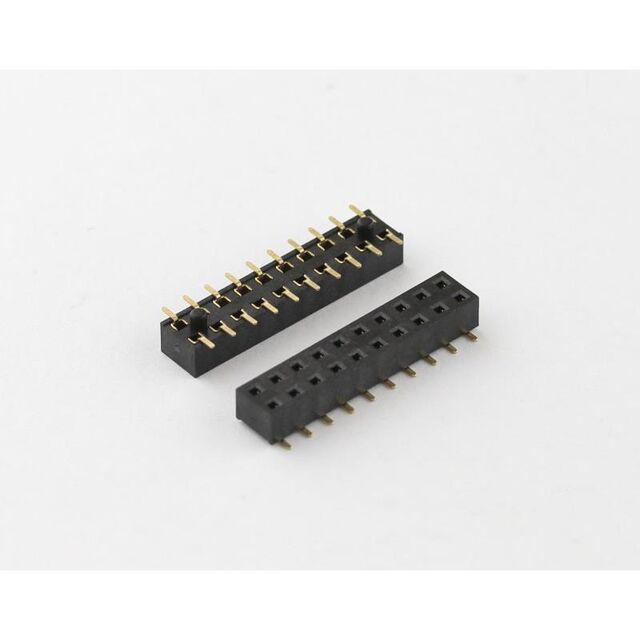

24 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
