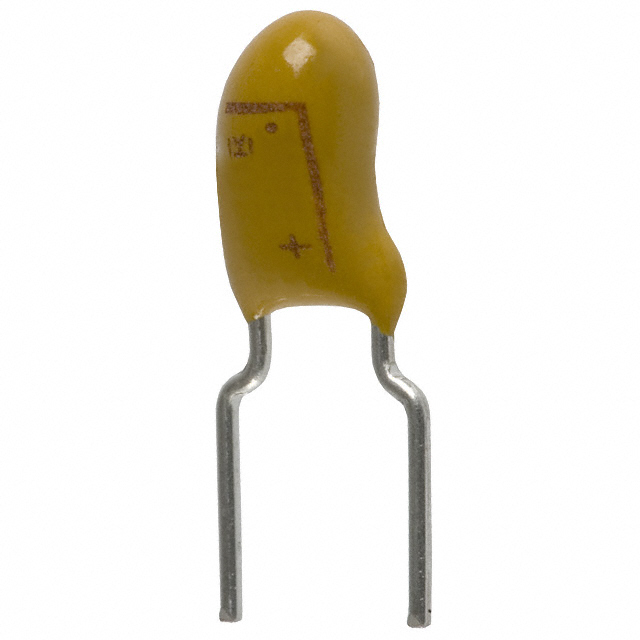

T356B106K006AT

Active

KEMET

CAP TANT SOLID 10UF 6.3V 10%( 4.5 X 8.9MM) RADIAL 5.08MM 125°C BAG

Search across all available documentation for this part.

Active

KEMET

CAP TANT SOLID 10UF 6.3V 10%( 4.5 X 8.9MM) RADIAL 5.08MM 125°C BAG

Technical Specifications

Parameters and characteristics for this part

Specification	T356B106K006AT

Capacitance	10 µF
ESR (Equivalent Series Resistance)	6 Ohms
Features	General Purpose
Height - Seated (Max) [Max] [z]	8.9 mm
Height - Seated (Max) [Max] [z]	0.35 "
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.177 "
Size / Dimension [diameter]	4.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	6.3 V

Part	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Type	Lead Spacing	Lead Spacing	Features	Mounting Type	Tolerance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Voltage - Rated
KEMET T356B684K050AT	B	8.9 mm	0.35 "	0.177 "	4.5 mm	680 nF	Conformal Coated	5.08 mm	0.2 in	General Purpose	Through Hole	10 %	Radial	-55 °C	125 °C	10 Ohm	50 VDC
KEMET T356B335K025AT	B	8.9 mm	0.35 "	0.177 "	4.5 mm	3.3 µF	Conformal Coated	5.08 mm	0.2 in	General Purpose	Through Hole	10 %	Radial	-55 °C	125 °C	5 Ohm	25 VDC
KEMET T356B105K050AT	B	8.9 mm	0.35 "	0.177 "	4.5 mm	1 µF	Conformal Coated	5.08 mm	0.2 in	General Purpose	Through Hole	10 %	Radial	-55 °C	125 °C	8 Ohm	50 VDC
KEMET T356B475K016AS	B	8.9 mm	0.35 "	0.177 "	4.5 mm	4.7 µF	Conformal Coated	5.08 mm	0.2 in	General Purpose	Through Hole	10 %	Radial	-55 °C	125 °C	5 Ohm	16 V
KEMET T356B106K006AT	B	8.9 mm	0.35 "	0.177 "	4.5 mm	10 µF	Conformal Coated	5.08 mm	0.2 in	General Purpose	Through Hole	10 %	Radial	-55 °C	125 °C	6 Ohms	6.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.60
