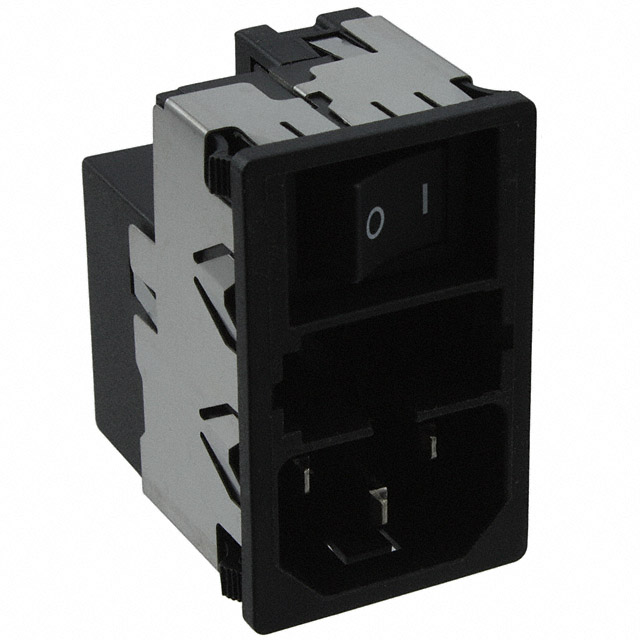

KMF1.1193.11

Active

SCHURTER Inc.

KMF, MOUNTING: FRONT SIDE, FILTER: MEDICAL VERSION (M5), FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

KMF, MOUNTING: FRONT SIDE, FILTER: MEDICAL VERSION (M5), FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1193.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

KMF, MOUNTING: FRONT SIDE, FILTER: MEDICAL VERSION (M5), FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14

Part	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Approval Agency	Termination	Termination	Ingress Protection	Accomodates a Fuse	Current Rating - Filter	Material Flammability Rating	Mounting Type	Filter Type	Switch Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Fuse Holder, Drawer	Connector Type	Connector Style
SCHURTER Inc. KMF1.1193.11	250 VAC	10 A	2.5 mm	1 mm	0.098 in	0.039 in	CCC, cULus, ENEC	0.189 ", 4.8 mm	Quick Connect	IP40		10 A	UL94 V-0	Panel Mount, Snap-In	Filtered (EMI, RFI) - Commercial, Medical	Switch On-Off	47.8 mm	28.8 mm	Shielded	Drawer Sold Separate	Receptacle, Male Blades - Module	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.65
Newark	Each	1	$ 26.31

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
