IR3565BMTRPBF

Obsolete

Infineon Technologies

IC REG CTRLR INTEL 2OUT 48QFN

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG CTRLR INTEL 2OUT 48QFN

Technical Specifications

Parameters and characteristics for this part

Specification	IR3565BMTRPBF

Applications	AMD SVI1, Controller, Intel VR12, SVI2, VR12.5
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

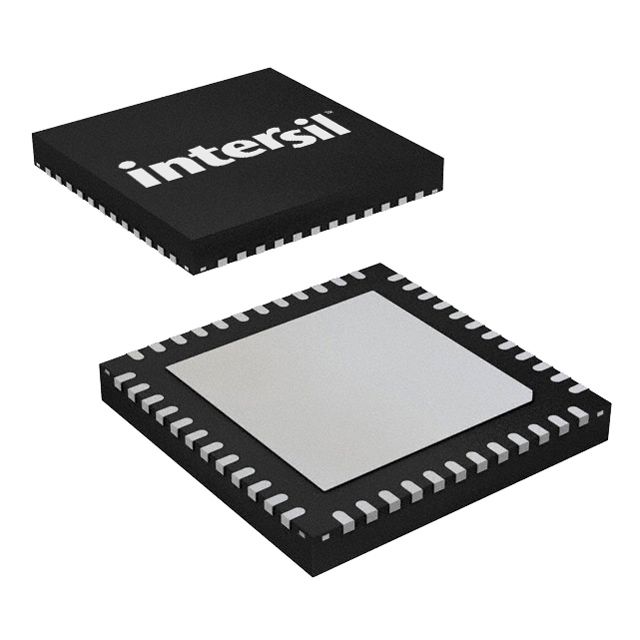

Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (6x6)
Voltage - Input	3.3 V

Part	Output Configuration	Control Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Frequency - Switching [Max]	Frequency - Switching [Min]	Supplier Device Package	Voltage - Supply (Vcc/Vdd)	Number of Outputs	Output Phases	Serial Interfaces	Function	Package / Case	Applications	Voltage - Input
Infineon Technologies IR3565AMCP01TRP	Positive	Enable Power Good	Surface Mount	85 °C	-40 °C	Buck	2 MHz	200 kHz	PG-VQFN-48-900	3.3 V	6	4	I2C PMBus SMBus	Step-Down	48-VFQFN Exposed Pad
Infineon Technologies IR3565BMTRPBF			Surface Mount	85 °C	-40 °C				48-QFN (6x6)		2				48-VFQFN Exposed Pad	AMD SVI1 Controller Intel VR12 SVI2 VR12.5	3.3 V
Infineon Technologies IR3565BMFS08TRP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- Controller, Intel VR12, VR12.5, AMD SVI1, SVI2 Voltage Regulator IC 2 Output 48-QFN (6x6)
