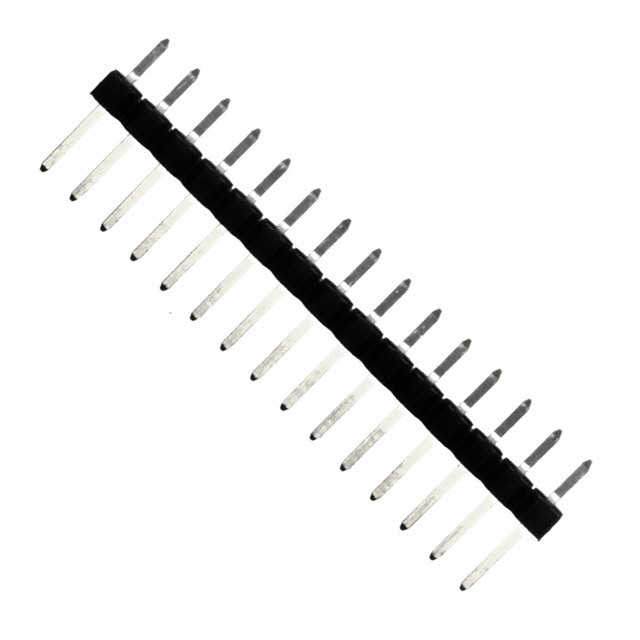

951115-8622-AR

Active

3M (TC)

CONN HEADER VERT 15POS 2MM

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER VERT 15POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	951115-8622-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	4.4 mm
Contact Length - Mating	0.173 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.7 mm
Overall Contact Length	0.343 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Termination	Number of Rows	Number of Positions	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Finish - Post	Connector Type	Shrouding	Insulation Color	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Contact Material	Material Flammability Rating	Contact Shape	Contact Type	Insulation Material	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Features
3M (TC) 951115-7622-AR	1 çm	39.4 çin	0.079 in	2 mm	Push-Pull	Solder	1	15	Flash	4.4 mm	0.173 in	0.079 in	2 mm	-55 °C	125 °C	Through Hole Right Angle	Gold	Tin	Header	Unshrouded	Black	All	0.11 in	2.79 mm	Copper Alloy	UL94 V-0	Square	Male Pin	Thermoplastic
3M (TC) 951115-8622-AR	1 çm	39.4 çin	0.079 in	2 mm	Push-Pull	Solder	1	15	Flash	4.4 mm	0.173 in			-55 °C	125 °C	Through Hole	Gold	Tin	Header	Unshrouded	Black	All	0.11 in	2.79 mm	Copper Alloy	UL94 V-0	Square	Male Pin	Thermoplastic	0.06 in	1.52 mm	8.7 mm	0.343 in
3M (TC) 951115-2530-AR-PR	1 çm	39.4 çin	0.079 in	2 mm	Push-Pull	Solder	1	15	Flash	4 mm	0.157 in			-25 °C	105 ░C	Surface Mount	Gold	Tin	Header	Unshrouded	Black	All			Copper Alloy	UL94 V-0	Square	Male Pin	Thermoplastic	0.06 in	1.52 mm			Pick and Place
