1217138-1
ActiveTE Connectivity AMP Connectors

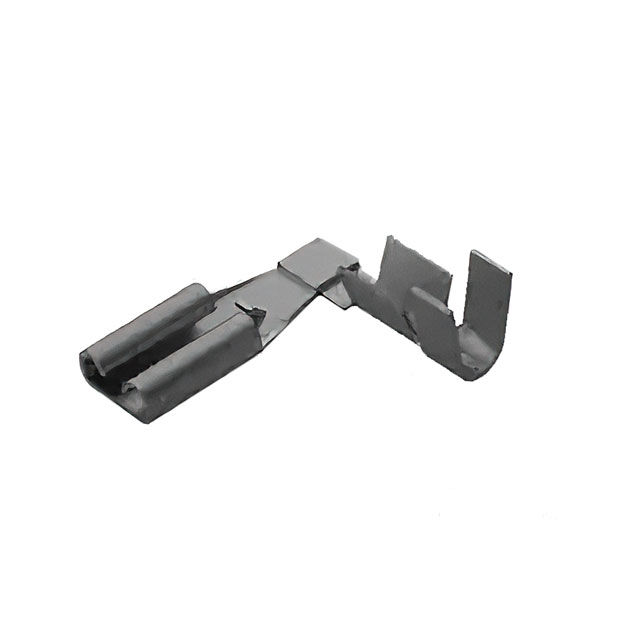

CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217138-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.110
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217138-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 0.1 in |
| Insulation Diameter [Max] | 2.54 mm |
| Insulation Diameter [Min] | 0.06 in |
| Insulation Diameter [Min] | 1.52 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.025 " |
| Tab Thickness | 0.64 mm |
| Tab Width | 2.79 mm |
| Tab Width | 0.11 " |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.08 | |||
| Tape & Reel (TR) | 24000 | $ 0.06 | ||
| 48000 | $ 0.06 | |||
| 72000 | $ 0.05 | |||
1217138 Series
CONN QC RCPT 18-22AWG 0.110
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Thickness | Tab Thickness | Insulation | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Mounting Type | Tab Width | Tab Width | Gender | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217138-1 | 0.06 in | 0.1 in | 2.54 mm | 1.52 mm | 0.025 " | 0.64 mm | Non-Insulated | Angled - 90°, Flag | 22 AWG | 17.5 AWG | Tin | Free Hanging (In-Line), Right Angle | 2.79 mm | 0.11 " | Female | Brass | Crimp |
Description
General part information
1217138 Series
0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
