EP53A7HQI
ObsoleteAltera
DC DC CONVERTER 1.8-3.3V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EP53A7HQI
ObsoleteAltera
DC DC CONVERTER 1.8-3.3V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EP53A7HQI |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 94 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

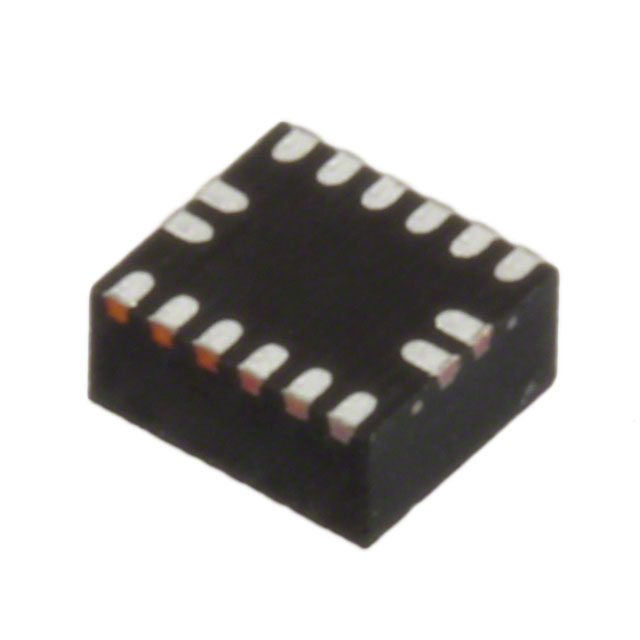

| Package / Case | 16-PowerTFQFN Module |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [z] | 0.04 in |
| Size / Dimension [z] | 1.1 mm |
| Supplier Device Package | 16-QFN (3x3) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.3 V |
| Voltage - Output 1 [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EP53A7 Series
Non-Isolated PoL Module DC DC Converter 1 Output 1.8 ~ 3.3V 1A 2.4V - 5.5V Input
