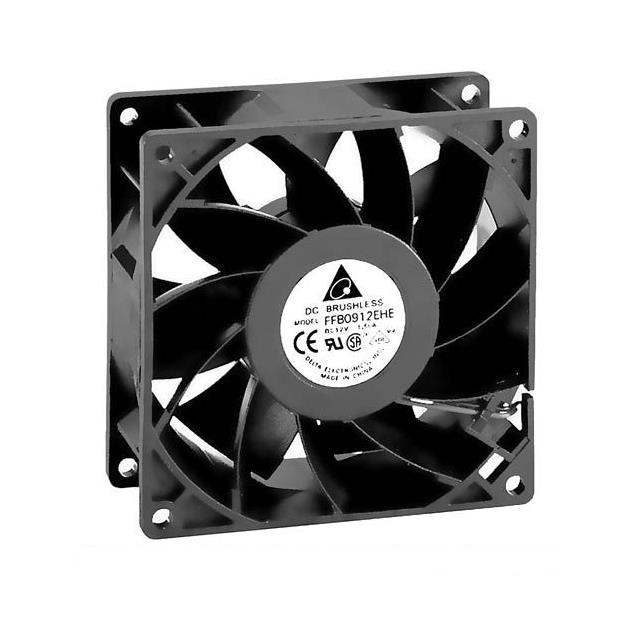

FFB0924EHE-SP20

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 21.6V TO 26.4V 110.18CFM 55DB 92 X 92 X 38MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB0924EHE-SP20

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 21.6V TO 26.4V 110.18CFM 55DB 92 X 92 X 38MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0924EHE-SP20

Air Flow	3.09 m³/min
Air Flow	110.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	12 W
RPM	4800 RPM
Static Pressure	165.6 Pa
Static Pressure	0.665 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	198 g
Weight	0.437 lb
Width [y]	38 mm

FFB0924 Series

Part	Lifetime @ Temp.	Fan Type	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Weight	Weight	Material - Frame	Air Flow	Air Flow	Noise	Bearing Type	Termination	Approval Agency	Material - Blade	Width [y]	Voltage - Rated	Current Rating (Amps)	Power (Watts)	RPM	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features
Delta Electronics FFB0924EHE-T500	70000 Hrs	Tubeaxial	IP55 - Dust Protected Water Resistant	27.6 VDC	14 VDC	165.6 Pa	0.665 in H2O	198 g	0.437 lb	Plastic	3.09 m³/min	110.2 CFM	55 dB	Ball	2 Wire Leads	CE CSA UL VDE	Plastic	38 mm	24 VDC	0.5 A	12 W	4800 RPM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics FFB0924EHE	70000 Hrs	Tubeaxial		27.6 VDC	14 VDC	165.6 Pa	0.665 in H2O	198 g	0.437 lb	Plastic	3.09 m³/min	110.2 CFM	55 dB	Ball	2 Wire Leads	CE CSA UL VDE	Plastic	38 mm	24 VDC	0.5 A	12 W	4800 RPM	-10 °C	-10 °C	60 °C	60 °C
Delta Electronics FFB0924VH-R00	70000 Hrs	Tubeaxial		27.6 VDC	14 VDC	79.5 Pa	0.319 in H2O	129.73 g	0.286 lb	Plastic	2.3 m³/min	82 CFM	48.2 dB(A)	Ball	3 Wire Leads	CE CSA UL VDE	Plastic	25.4 mm	24 VDC	0.31 A	7.44 W	3700 RPM	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Sensor
Delta Electronics FFB0924EHE-SP20	70000 Hrs	Tubeaxial		26.4 VDC	21.6 VDC	165.6 Pa	0.665 in H2O	198 g	0.437 lb	Plastic	3.09 m³/min	110.2 CFM	55 dB	Ball	3 Wire Leads	CE CSA UL VDE	Plastic	38 mm	24 VDC	0.5 A	12 W	4800 RPM	-10 °C	-10 °C	70 °C	70 °C	Locked Rotor Protection PWM Control
Delta Electronics FFB0924EHE-F00	70000 Hrs	Tubeaxial		27.6 VDC	14 VDC	165.6 Pa	0.665 in H2O	198 g	0.437 lb	Plastic	3.09 m³/min	110.2 CFM	55 dB	Ball	3 Wire Leads	CE CSA UL VDE	Plastic	38 mm	24 VDC	0.5 A	12 W	4800 RPM	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0924SHE	70000 Hrs	Tubeaxial		27.6 VDC	14 VDC	142.5 Pa	0.572 in H2O	198 g	0.437 lb	Plastic	2.81 m³/min	100.3 CFM	52.5 dB(A)	Ball	2 Wire Leads	CE CSA UL VDE	Plastic	38 mm	24 VDC	400 mA	9.6 W	4400 RPM	-10 °C	-10 °C	70 °C	70 °C
Delta Electronics FFB0924VHE-T50R	70000 Hrs	Tubeaxial	IP55 - Dust Protected Water Resistant	27.6 VDC	14 VDC	101.1 Pa	0.406 in H2O	198 g	0.437 lb	Plastic	2.39 mł/min	85.5 CFM	47.5 dB	Ball	3 Wire Leads	CE cURus VDE	Plastic	38 mm	24 VDC	0.28 A	6.72 W	3800 RPM	-10 °C	-10 °C	70 °C	70 °C	Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 13.72

Description

General part information

FFB0924 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 110.2 CFM (3.09m³/min) 3 Wire Leads
