AXT632124

Obsolete

Panasonic Electric Works

CONN HDR 32POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 32POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT632124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish	Number of Rows	Features	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]
Panasonic Electric Works AXT632124	0.84 mm	0.033 "	Surface Mount	Gold	2	Solder Retention	1 mm	Header Center Strip Contacts	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

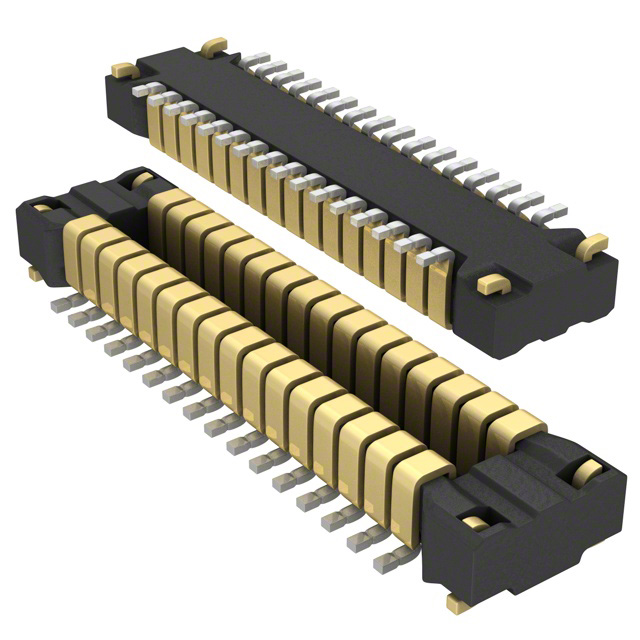

32 Position Connector Header, Center Strip Contacts Surface Mount Gold
