M2025ES1W03

Obsolete

NKK Switches

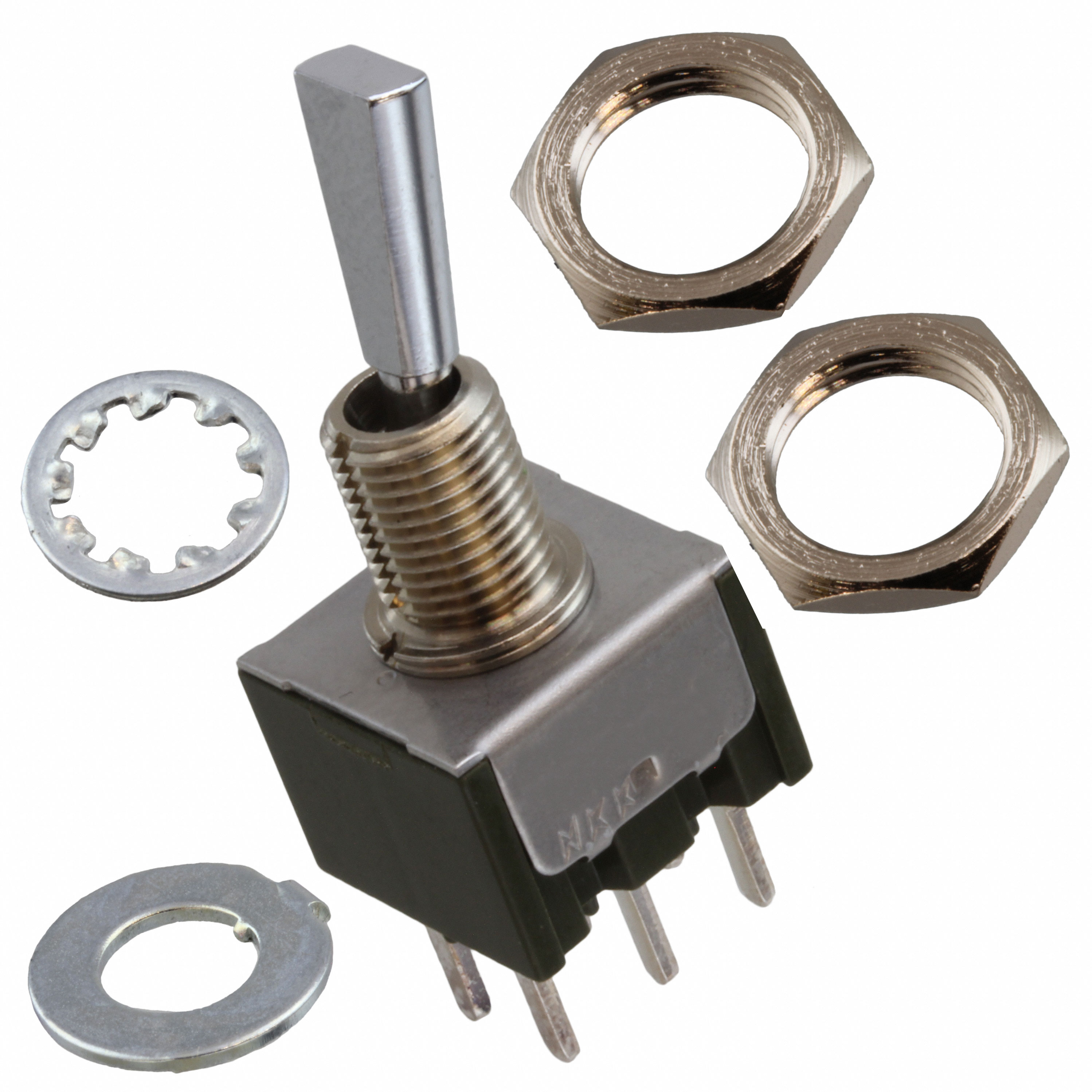

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2025ES1W03

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Features	Actuator Type	Actuator Material	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - DC	Actuator Length [x]	Bushing Thread	Termination Style	Illumination
NKK Switches M2025ES1W03	125 V	25000 Steps	3 A 6 A	Epoxy Sealed Terminals	Flatted	Brass Chrome Plated	DPDT	-30 ░C	85 °C	6.5 mm	On-Mom	30 V	11.4 mm	1/4-40	PC Pin	Non-Illuminated
NKK Switches M2025ES1W01	125 V	25000 Steps	3 A 6 A	Epoxy Sealed Terminals	Flatted	Brass Chrome Plated	DPDT	-30 ░C	85 °C	6.5 mm	On-Mom	30 V	11.4 mm	1/4-40	Solder Lug	Non-Illuminated
