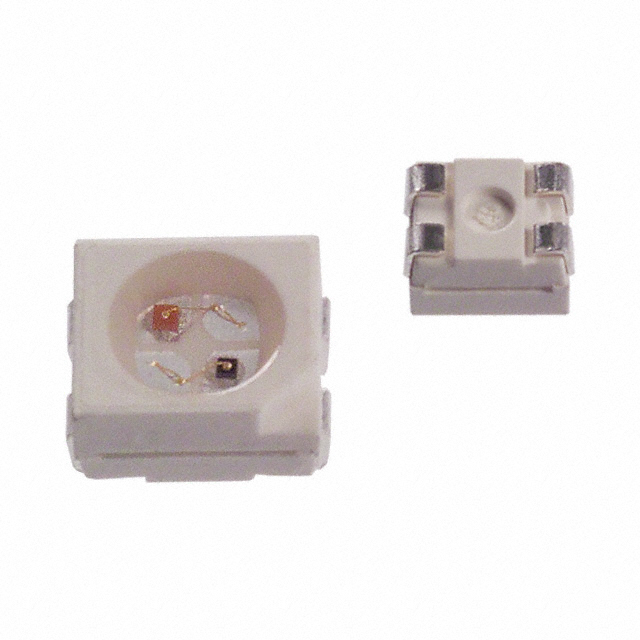

VAOS-SP4RGB4
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4PLCC SMD
VAOS-SP4RGB4
ActiveVisual Communications Company - VCC
LED RGB CLEAR 4PLCC SMD
Description
General part information
VAOS-SP4 Series
Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.4V Green, 3.4V Blue 4-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | VAOS-SP4RGB4 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Common Anode |
| Current - Test (Blue) | 20 mA |
| Current - Test (Green) | 20 mA |
| Current - Test (Red) | 20 mA |
| Current - Test Colors | Red, Blue, Green |
| Height (Max) | 2.1 mm |
| Lens Color | Colorless |
| Lens Diameter | 2.4 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating (Blue) | 126 mcd |
| Millicandela Rating (Green) | 315 mcd |
| Millicandela Rating (Red) | 199 mcd |
| Millicandela Rating Colors | Red, Green, Blue |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Package Name | 4-PLCC |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) (Blue) | 3.4 V |
| Voltage - Forward (Vf) (Typ) (Green) | 3.4 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2 V |
| Voltage - Forward (Vf) (Typ) Color | Green, Red, Blue |
| Wavelength - Dominant (Blue) | 470 nm |
| Wavelength - Dominant (Green) | 525 nm |
| Wavelength - Dominant (Red) | 626 nm |
| Wavelength - Dominant Color | Blue, Green, Red |
| Wavelength - Peak (Blue) | 468 nm |
| Wavelength - Peak (Green) | 518 nm |
| Wavelength - Peak (Red) | 632 nm |
| Wavelength - Peak Colors | Green, Blue, Red |
