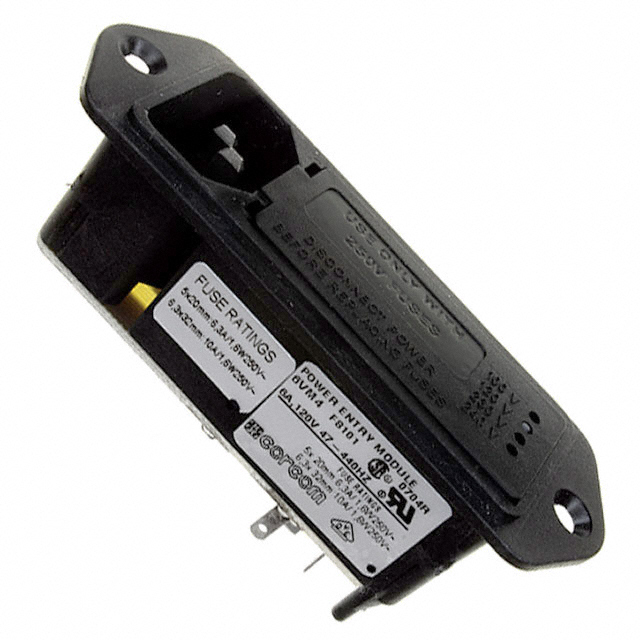

6VM4C
ActiveTE Connectivity Raychem Cable Protection
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6VM4C |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 75.44 mm |
| Panel Cutout Dimensions [y] | 29.21 mm |
| Panel Thickness [Max] | 0.09 in |
| Panel Thickness [Max] | 2.29 mm |
| Panel Thickness [Min] | 0.06 in |
| Panel Thickness [Min] | 1.52 mm |
| Termination | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - Appliance Inlet | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 144 | $ 29.03 | |
Description
General part information
Corcom M Series
Power Entry Module, Quad AC Input, No Switch, None, Vertical, 6 A, .110" FASTON Output, 100 VAC / 120 VAC / 240 VAC, Corcom M, Power Entry Modules
