A10XSR10XSR36R152A

Active

JST Sales America Inc.

JUMPER 10XSR-36S - 10XSR-36S 6"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 10XSR-36S - 10XSR-36S 6"

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Connector Type	Number of Positions	Color	Length	Length	Length	Cable Termination	Contact Finish	Number of Rows	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A10XSR10XSR36R51B	0.024 "	0.6 mm	Socket to Socket	10	Individual Red	50.8 mm	2 "	0.167 '	IDC	Tin	1
JST Sales America Inc. A10XSR10XSR36R102B	0.024 "	0.6 mm	Socket to Socket	10	Individual Red				IDC	Tin	1	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A10XSR10XSR36R102A	0.024 "	0.6 mm	Socket to Socket Reversed	10	Individual Red				IDC	Tin	1	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A10XSR10XSR36R152B	0.024 "	0.6 mm	Socket to Socket	10	Individual Red	152.4 mm	6 "		IDC	Tin	1				0.5 '
JST Sales America Inc. A10XSR10XSR36R254A	0.024 "	0.6 mm	Socket to Socket Reversed	10	Individual Red	254 mm	10 in	0.833 ft	IDC	Tin	1
JST Sales America Inc. A10XSR10XSR36R51A	0.024 "	0.6 mm	Socket to Socket Reversed	10	Individual Red	50.8 mm	2 "	0.167 '	IDC	Tin	1
JST Sales America Inc. A10XSR10XSR36R152A	0.024 "	0.6 mm	Socket to Socket Reversed	10	Individual Red	152.4 mm	6 "		IDC	Tin	1				0.5 '
JST Sales America Inc. A10XSR10XSR36R254B	0.024 "	0.6 mm	Socket to Socket	10	Individual Red	254 mm	10 in	0.833 ft	IDC	Tin	1
JST Sales America Inc. A10XSR10XSR36R203B	0.024 "	0.6 mm	Socket to Socket	10	Individual Red	203.2 mm	8 in	0.667 ft	IDC	Tin	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

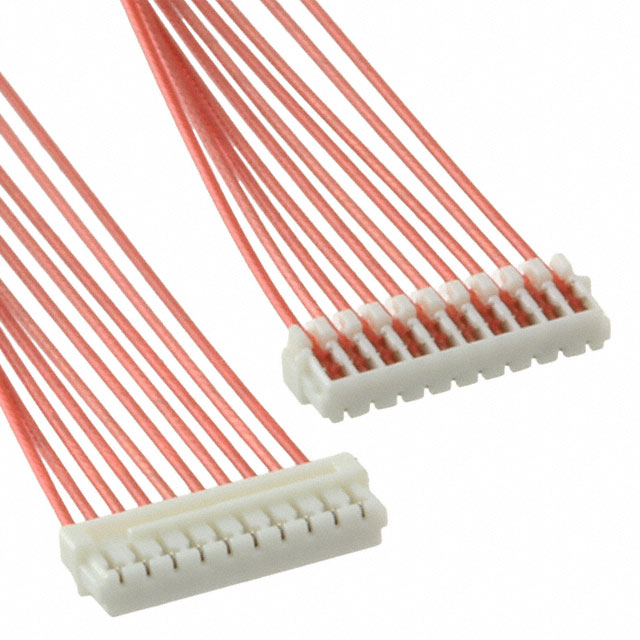

10 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.500' (152.40mm, 6.00")
