4650-6000

Active

3M (TC)

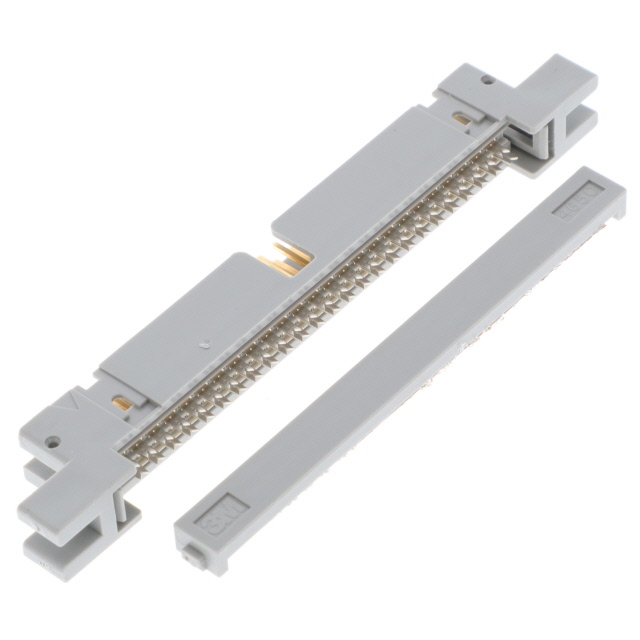

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +1

4650-6000

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4650-6000

Cable Termination	IDC
Color	Gray
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG
Wire Type	Discrete or Ribbon Cable

4650 Series

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Features	Color	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing [x]	Row Spacing	Contact Type	Cable Termination	Fastening Type	Wire Type
3M (TC) 4650-6200	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Short	Discrete or Ribbon Cable
3M (TC) 4650-6001	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC		Discrete or Ribbon Cable
3M (TC) 4650-7305	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Closed End	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Long	Discrete or Ribbon Cable
3M (TC) 4650-7201	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Closed End	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Short	Discrete or Ribbon Cable
3M (TC) 4650-6000	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC		Discrete or Ribbon Cable
3M (TC) 4650-B300	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug			2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC		Discrete or Ribbon Cable
3M (TC) 4650-6300	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Long	Discrete or Ribbon Cable
3M (TC) 4650-6205	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Short	Discrete or Ribbon Cable
3M (TC) 4650-6305	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC	Latch Lock/Eject Hooks Long	Discrete or Ribbon Cable
3M (TC) 4650-6005	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded	Gold	0.76 Ám	30 Áin	2	Plug	Feed Through	Gray	2.54 mm	0.1 in	50	0.1 in	2.54 mm	Male Pin	IDC		Discrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.43
		10	$ 13.67
		25	$ 13.15
		50	$ 12.62
		100	$ 11.92
		300	$ 10.87
		500	$ 10.17
		1000	$ 9.33

Description

General part information

4650 Series

The 4650-6000 is a 50-way 0.100 x 0.100-inch Wire to Board Connector for 0.050-inch pitch cable, with gold-plated phosphor bronze contacts and IDC/IDT termination. This 4600 series wiremount plug/connector is glass filled polyester (PBT) insulated, shrouded to protect against physical and chemical pin damage. This wire to board connector has open end cover, military (with 3518 polarizing key) and centerbump polarization for 50-contacts with mounting flange.

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Operating Instructions EN

Datasheet
