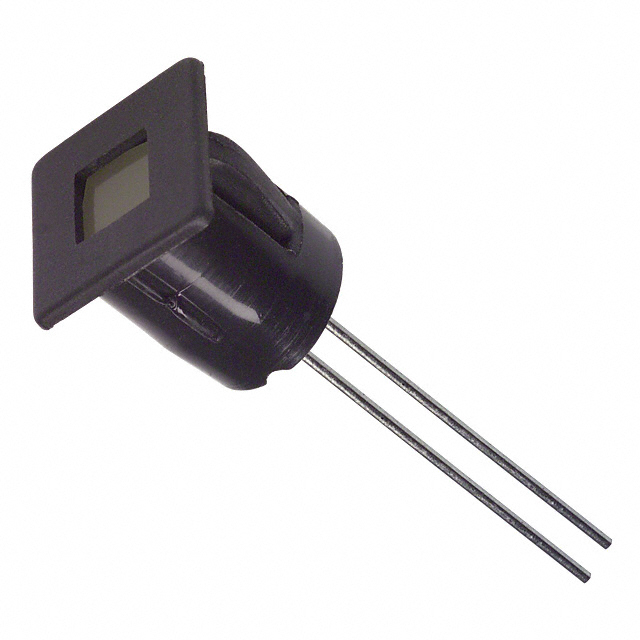

SSI-LXH55YD

Active

Lumex Opto/Components Inc.

LED 5X5MM SQR YEL DIFF PANEL MT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 5X5MM SQR YEL DIFF PANEL MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Yellow Diffused 80° 2.1V 30mA

Technical documentation and resources

No documents available

Part	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Millicandela Rating	Lamp Color	Voltage	Viewing Angle	Lens Transparency	Lens Style	Panel Cutout Shape	Lens Size	Wavelength - Peak	Current	Termination Style	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXH55GD	LED	8.64 mm	0.34 in	Green	10 mcd	Green	2.1 V	80 °	Diffused	Square with Flat Top	Square	4.4 mm	565 nm	30 mA
Lumex Opto/Components Inc. SSI-LXH55ID-600	LED	8.64 mm	0.34 in	Red	20 mcd	Red	2 V	110 °	Diffused	Square with Flat Top	Round	4.4 mm	635 nm		609.6 mm	24 in	Wire Leads
Lumex Opto/Components Inc. SSI-LXH55YD	LED			Yellow	10 mcd	Yellow	2.1 V	80 °	Diffused	Square with Flat Top	Square	4.4 mm	585 nm	30 mA
