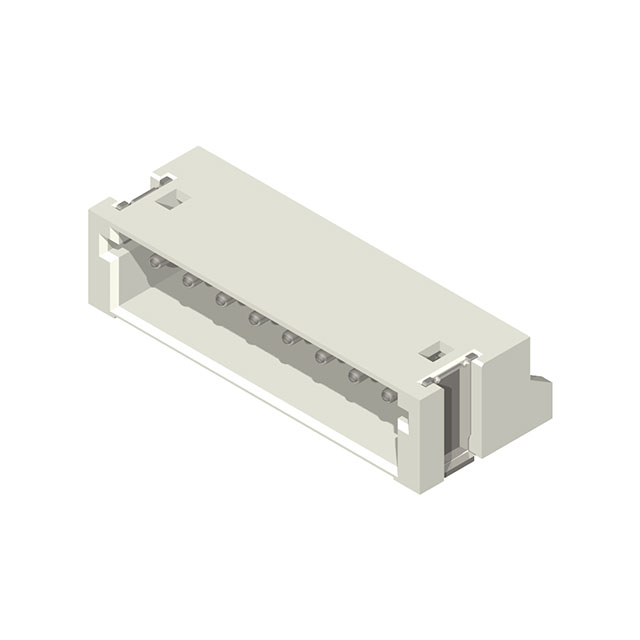

CI1506M1HR0-NH

Active

Cvilux USA

6 POS 1.50MM(.059) WIRE TO BOARD

Search across all available documentation for this part.

Active

Cvilux USA

6 POS 1.50MM(.059) WIRE TO BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CI1506M1HR0-NH	CI1506M1 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	120 µin	120 µin
Contact Finish Thickness - Mating	3.05 Ám	3.05 Ám
Contact Finish Thickness - Post	120 Áin	120 Áin
Contact Finish Thickness - Post	3.05 Ám	3.05 Ám
Contact Length - Mating	0.1 in	0.1 in
Contact Length - Mating	2.54 mm	2.54 mm
Contact Length - Mating	-	0.093 "
Contact Length - Mating	-	2.36 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Solder Retention, Pick and Place
Insulation Color	Natural	Natural
Insulation Height	0.148 in	0.148 - 0.199 in
Insulation Height	3.75 mm	3.75 - 5.05 mm
Insulation Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6, Plastic, Halogen Free
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	50 VAC	50 VAC

6 POS 1.50MM(.059) WIRE TO BOARD

Part	Contact Material	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Number of Rows	Fastening Type	Contact Shape	Insulation Color	Material Flammability Rating	Number of Positions	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Length - Mating	Contact Length - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Style	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]
Cvilux USA CI1506M1HR0-NH	Brass	0.148 in	3.75 mm	Polyamide (PA46), Nylon 4/6	50 VAC	120 µin	3.05 Ám	Header	All	1	Detent Lock	Square	Natural	UL94 V-0	6	Surface Mount, Right Angle	Tin	120 Áin	3.05 Ám	Solder Retention	0.1 in	2.54 mm	Solder	-25 °C	85 °C	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin
Cvilux USA CI1506M1VR0-NH	Brass	0.199 in	5.05 mm	Plastic, Halogen Free	50 VAC	120 µin	3.05 Ám	Header	All	1	Detent Lock	Square	Natural	UL94 V-0	6	Surface Mount	Tin	120 Áin	3.05 Ám	Pick and Place, Solder Retention			Solder	-25 °C	85 °C	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	0.093 "	2.36 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 6 position 0.059" (1.50mm)
