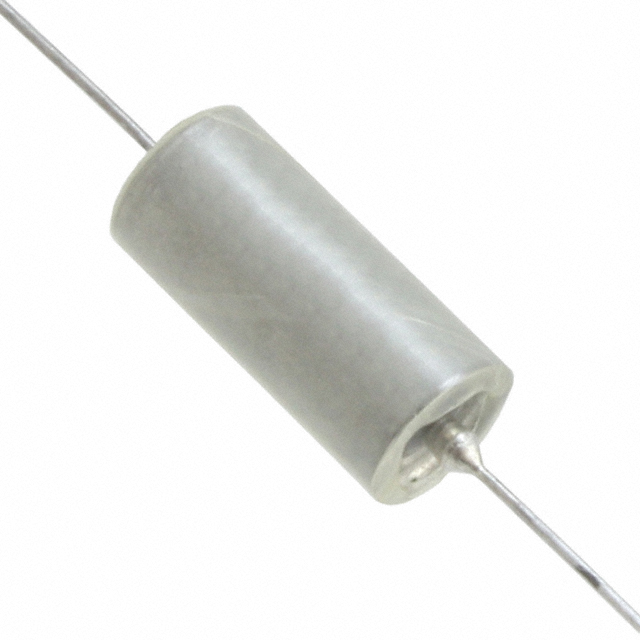

M39003/09-2084

Active

KEMET

CAP TANT 22UF 10% 50V AXIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 22UF 10% 50V AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	M39003/09-2084

Capacitance	22 µF
ESR (Equivalent Series Resistance)	160 mOhm
Failure Rate	B (0.1%)
Features	High Reliability
Grade	Military
Manufacturer Size Code	D
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Qualification	MIL-PRF-39003/9
Size / Dimension [diameter]	8.92 mm
Size / Dimension [diameter]	0.351 in
Size / Dimension [x]	23.42 mm
Size / Dimension [x]	0.922 in
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	50 VDC

Part	ESR (Equivalent Series Resistance)	Features	Qualification	Mounting Type	Package / Case	Failure Rate	Type	Tolerance	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Grade	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code
KEMET M39003/09-2017	70 mOhms	High Reliability	MIL-PRF-39003/9	Through Hole	Axial	B (0.1%)	Hermetically Sealed	10 %	10 V	120 µF	-55 °C	125 °C	0.289 in	20.88 mm	0.822 in	7.34 mm	Military
KEMET M39003/09-2084	160 mOhm	High Reliability	MIL-PRF-39003/9	Through Hole	Axial	B (0.1%)	Hermetically Sealed	10 %	50 VDC	22 µF	-55 °C	125 °C	0.351 in			8.92 mm	Military	23.42 mm	0.922 in	D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF Hermetically Sealed Tantalum Capacitors 50 V Axial 160mOhm
