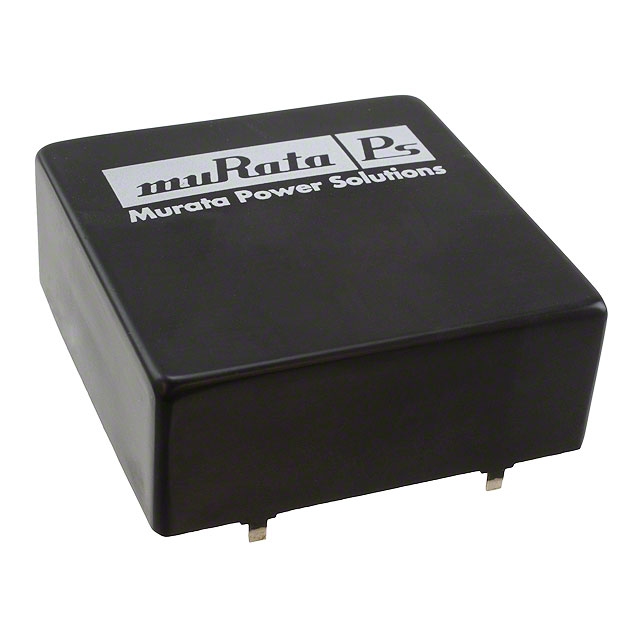

RUW15SL05HC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RUW15SL05HC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RUW15SL05HC | RUW15 Series |
|---|---|---|
| Applications | Railway, ITE (Commercial) | Railway, ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 3 A | 3 - 625 mA |
| Efficiency | 80 % | 78.6 - 80 % |
| Features | Remote On/Off, OVP, SCP, OTP | Remote On/Off, OVP, SCP, OTP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module | 8-DIP Module |
| Power (Watts) | 15 W | 15 W |
| Size / Dimension [x] | 50.8 mm | 50.8 mm |
| Size / Dimension [x] | 2 in | 2 in |
| Size / Dimension [y] | 50.8 mm | 50.8 mm |
| Size / Dimension [y] | 2 in | 2 in |
| Size / Dimension [z] | 20 mm | 20 mm |
| Size / Dimension [z] | 0.79 in | 0.79 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V | 160 V |
| Voltage - Input (Min) [Min] | 16 V | 16 V |
| Voltage - Isolation | 5000 V | 5000 V |
| Voltage - Output 1 | 5 V | 5 - 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
RUW15 Series
DC DC CONVERTER 24V 15W
| Part | Current - Output (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Applications | Efficiency | Control Features | Features | Type | Mounting Type | Voltage - Output 1 | Number of Outputs | Power (Watts) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. RUW15SL24C | 625 mA | 5000 V | 16 V | 160 V | 85 °C | -40 °C | 50.8 mm | 2 in | 50.8 mm | 2 in | 20 mm | 0.79 in | ITE (Commercial), Railway | 78.6 % | Active High, Enable | OTP, OVP, Remote On/Off, SCP | Isolated Module | Through Hole | 24 V | 1 | 15 W | 8-DIP Module |
Murata Power Solutions Inc. RUW15SL05HC | 3 A | 5000 V | 16 V | 160 V | 85 °C | -40 °C | 50.8 mm | 2 in | 50.8 mm | 2 in | 20 mm | 0.79 in | ITE (Commercial), Railway | 80 % | Active High, Enable | OTP, OVP, Remote On/Off, SCP | Isolated Module | Through Hole | 5 V | 1 | 15 W | 8-DIP Module |
Description
General part information
RUW15 Series
Isolated Module DC DC Converter 1 Output 5V 3A 16V - 160V Input
