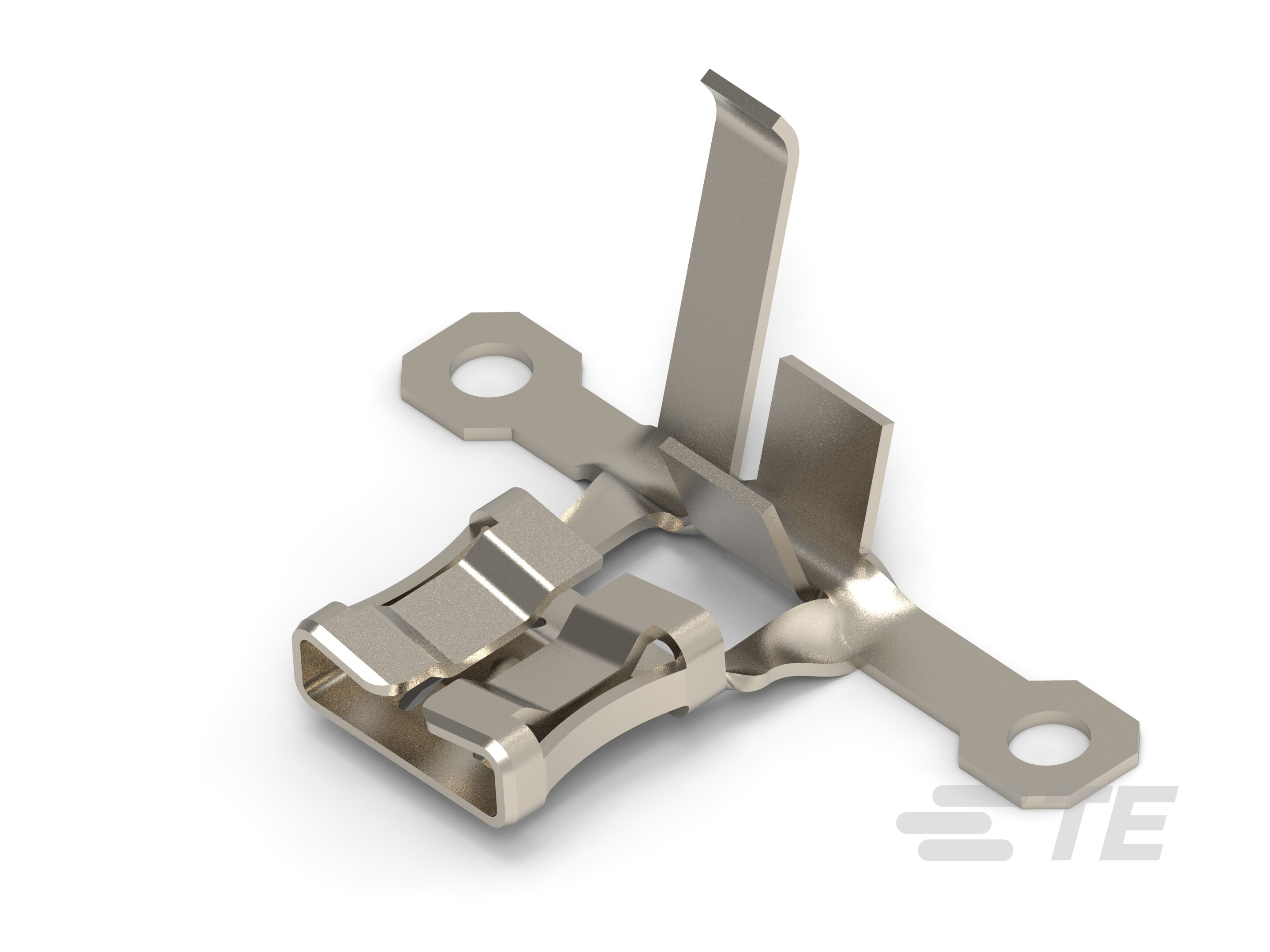

250 FASTON,FLAG,REC.,16-12 AWG,PNST-2178439-1

2178439-1

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL, F-SPRING FASTON SERIES, FEMALE FLAG DISCONNECT, 6.35MM X 0.81MM

Find alt
250 FASTON,FLAG,REC.,16-12 AWG,PNST-2178439-1

2178439-1

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL, F-SPRING FASTON SERIES, FEMALE FLAG DISCONNECT, 6.35MM X 0.81MM

Find alt

Description

General part information

2178439 Series

0.250" (6.35mm) Quick Connect Female 12-16 AWG Crimp Connector Non-Insulated

Technical Specifications

Parameters and characteristics for this part

Specification2178439-1
Contact FinishNickel
Contact MaterialSteel
FeaturesLow Insertion Force (LIF)
GenderFemale
InsulationNon-Insulated
Insulation Diameter (Max)0.15 in
Insulation Diameter (Min)0.106 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.276 in
Tab Thickness0.032 in
Tab Width0.25 in
Terminal Angle90 °
Terminal TypeFlag, Angled
TerminationCrimp
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)12 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
