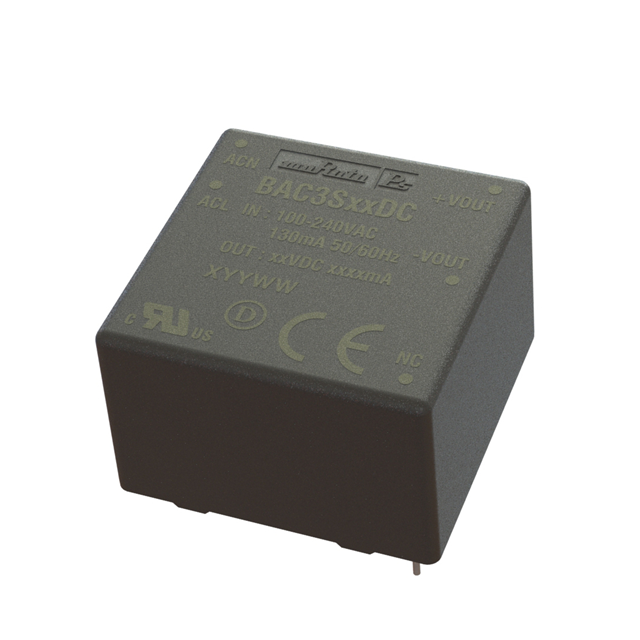

BAC3S12DC
ActiveMurata Power Solutions Inc.
AC/DC PCB MOUNT POWER SUPPLY (PSU), 120 TO 370VDC, ITE, 1 OUTPUT, 3 W, 12 V, 250 MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAC3S12DC
ActiveMurata Power Solutions Inc.
AC/DC PCB MOUNT POWER SUPPLY (PSU), 120 TO 370VDC, ITE, 1 OUTPUT, 3 W, 12 V, 250 MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BAC3S12DC | BAC3S Series |
|---|---|---|
| Applications | - | ITE (Commercial), Medical |
| Approval Agency | - | CE, cURus |
| Current - Output (Max) | - | 125 - 600 mA |
| Efficiency | - | 77 - 81 % |
| Features | - | Universal Input |
| Line Regulation | - | 0.5 % |
| Load Regulation | - | 1 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 5-DIP Module |
| Power (Watts) | - | 3 W |
| Size / Dimension | - | 25.4 mm |
| Size / Dimension | - | 0.64 in |
| Size / Dimension | - | 25.4 mm |
| Size / Dimension | - | 1 in |
| Size / Dimension | - | 25.4 mm |
| Size / Dimension | - | 16.3 mm |
| Type | - | Enclosed |
| Voltage - Input | - | 85 - 120 VAC |
| Voltage - Input | - | 264 - 370 VDC |
| Voltage - Output 1 | - | 5 - 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
BAC3S Series
AC/DC PCB MOUNT POWER SUPPLY (PSU), 120 TO 370VDC, ITE, 1 OUTPUT, 3 W, 12 V, 250 MA
| Part | Number of Outputs | Line Regulation | Efficiency | Mounting Type | Load Regulation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Features | Package / Case | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Approval Agency | Current - Output (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BAC3S12DC | |||||||||||||||||||||||
Murata Power Solutions Inc. BAC3S12DC | |||||||||||||||||||||||
Murata Power Solutions Inc. BAC3S05DC | 1 | 0.5 % | 77 % | Through Hole | 1 % | 25.4 mm | 0.64 in | 25.4 mm | 1 in | 25.4 mm | 16.3 mm | Universal Input | 5-DIP Module | 5 V | 85 VAC, 120 VDC | 264 VAC, 370 VDC | 3 W | CE, cURus | 600 mA | Enclosed | 85 °C | -40 °C | ITE (Commercial), Medical |
Murata Power Solutions Inc. BAC3S12DC | 1 | 0.5 % | 80 % | Through Hole | 1 % | 25.4 mm | 0.64 in | 25.4 mm | 1 in | 25.4 mm | 16.3 mm | Universal Input | 5-DIP Module | 12 V | 85 VAC, 120 VDC | 264 VAC, 370 VDC | 3 W | CE, cURus | 250 mA | Enclosed | 85 °C | -40 °C | ITE (Commercial), Medical |
Murata Power Solutions Inc. BAC3S05DC | |||||||||||||||||||||||
Murata Power Solutions Inc. BAC3S24DC | 1 | 0.5 % | 81 % | Through Hole | 1 % | 25.4 mm | 0.64 in | 25.4 mm | 1 in | 25.4 mm | 16.3 mm | Universal Input | 5-DIP Module | 24 V | 85 VAC, 120 VDC | 264 VAC, 370 VDC | 3 W | CE, cURus | 125 mA | Enclosed | 85 °C | -40 °C | ITE (Commercial), Medical |
Description
General part information
BAC3S Series
Enclosed AC DC Converters 1 Output 12V 250mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
