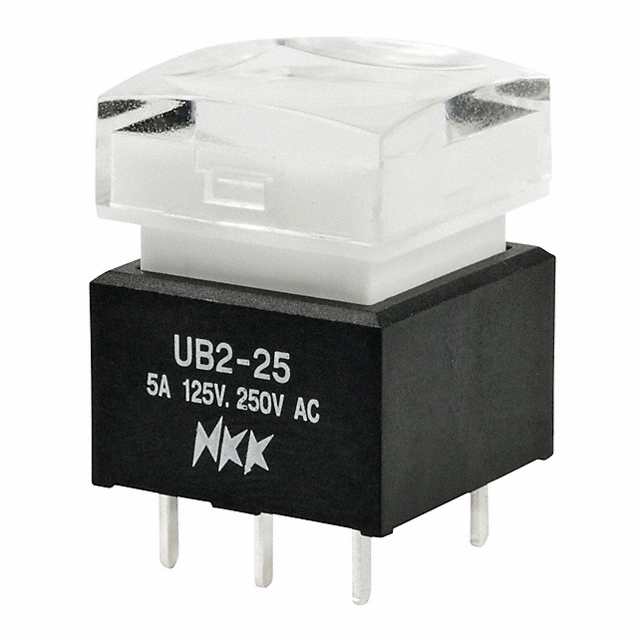

Specification	UB225SKW03N-4JB

Actuator Marking	No Marking
Actuator Type	Square, Button
Circuit	DPDT
Color - Actuator/Cap	Clear (White Filter/Diffuser)
Current Rating	5 A
Electrical Life (Cycles)	10000 Cycles
Features	Fully, Sealed
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB225SK Series

Part	Features	Circuit	Actuator Type	Illumination Voltage (Nominal)	Illumination Type	Color	Actuator Marking	Voltage Rating - AC	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Voltage Rating - DC	Mounting Type	Current Rating	Color - Actuator/Cap	Type	Termination Style	Mechanical Life (Cycles)	Electrical Life (Cycles)	Illumination Voltage (Nominal)
NKK Switches UB225SKG036G-1JB	Fully Sealed	DPDT	Button Square	2.9 VDC	LED	Blue	No Marking	28 V	-25 °C	50 °C	On-Mom	28 V	Through Hole	0.4 VA	Clear (White Filter/Diffuser)	Illuminated Standard	PC Pin	1000000 Cycles	200000
NKK Switches UB225SKW03N-4JB	Fully Sealed	DPDT	Button Square				No Marking	125 V	-25 °C	70 °C	On-Mom	30 V	Through Hole	5 A	Clear (White Filter/Diffuser)	Standard	PC Pin	1000000 Cycles	10000 Cycles
NKK Switches UB225SKG036CF-1JB	Fully Sealed	DPDT	Button Square	2.1 VDC 3.5 VDC	LED	Green Red	No Marking	28 V	-25 °C	50 °C	On-Mom	28 V	Through Hole	0.4 VA	Clear (White Filter/Diffuser)	Illuminated Standard	PC Pin	1000000 Cycles	200000	2.1 3.5 VDC
NKK Switches UB225SKW035C-1JB	Fully Sealed	DPDT	Button Square	1.85 VDC	LED	Red	No Marking	125 V	-25 °C	50 °C	On-Mom	30 V	Through Hole	5 A	Clear (White Filter/Diffuser)	Illuminated Standard	PC Pin	1000000 Cycles	10000 Cycles
NKK Switches UB225SKW035C	Fully Sealed	DPDT	Plunger for Cap	1.85 VDC	LED	Red	No Marking	125 V	-25 °C	50 °C	On-Mom	30 V	Through Hole	5 A		Illuminated Standard	PC Pin	1000000 Cycles	10000 Cycles
NKK Switches UB225SKG035D-1JB	Fully Sealed	DPDT	Button Square	2 VDC	LED	Amber	No Marking	28 V	-25 °C	50 °C	On-Mom	28 V	Through Hole	0.4 VA	Clear (White Filter/Diffuser)	Illuminated Standard	PC Pin	1000000 Cycles	200000
NKK Switches UB225SKW036CF	Fully Sealed	DPDT	Plunger for Cap	2.1 VDC 3.5 VDC	LED	Green Red	No Marking	125 V	-25 °C	50 °C	On-Mom	30 V	Through Hole	5 A		Illuminated Standard	PC Pin	1000000 Cycles	10000 Cycles	2.1 3.5 VDC
NKK Switches UB225SKG035C-1JB	Fully Sealed	DPDT	Button Square	1.85 VDC	LED	Red	No Marking	28 V	-25 °C	50 °C	On-Mom	28 V	Through Hole	0.4 VA	Clear (White Filter/Diffuser)	Illuminated Standard	PC Pin	1000000 Cycles	200000
NKK Switches UB225SKW03N-5B	Fully Sealed	DPDT	Button Square				No Marking	125 V	-25 °C	70 °C	On-Mom	30 V	Through Hole	5 A	White	Standard	PC Pin	1000000 Cycles	10000 Cycles
NKK Switches UB225SKW035D	Fully Sealed	DPDT	Plunger for Cap	2 VDC	LED	Amber	No Marking	125 V	-25 °C	50 °C	On-Mom	30 V	Through Hole	5 A		Illuminated Standard	PC Pin	1000000 Cycles	10000 Cycles
