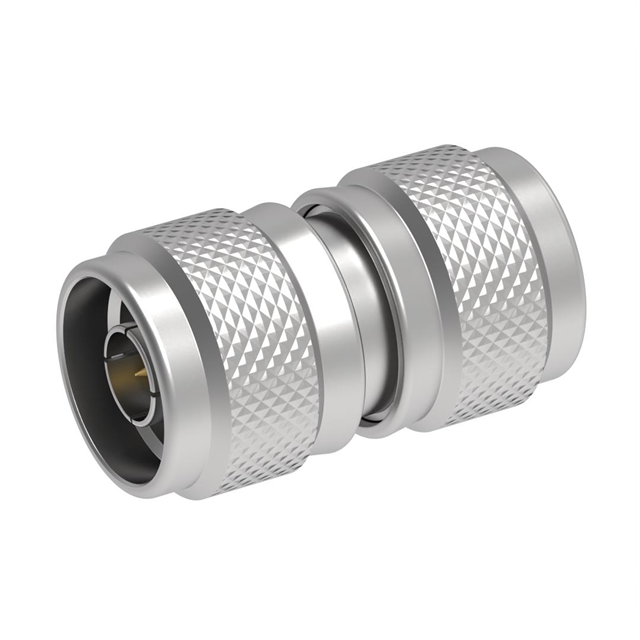

Specification	R161703000

Adapter Series	N to N
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Impedance	50 Ohm
Insertion Loss	0.15 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Style	Straight

R16170 Series

Part	Fastening Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Center Contact Plating	Adapter Type	Center Gender	Frequency - Max	Style	Convert From (Adapter End)	Adapter Series	Mounting Type	Conversion Type	Impedance	Mating Cycles	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Body Finish	Insertion Loss	Center Contact Material
Radiall USA, Inc. R161703000	Threaded	N Plug	Male Pin	Gold	Plug to Plug	Male	11 GHz	Straight	Male Pin N Plug	N to N	Free Hanging (In-Line)	Same Series	50 Ohm	500 cycles	Brass	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	White Bronze	0.15 dB	Brass
Radiall USA, Inc. R161705000W	Threaded	N Jack	Female Socket	Gold	Jack to Jack	Female	11 GHz	Straight	Female Socket N Jack	N to N	Free Hanging (In-Line)	Same Series	50 Ohm	500 cycles	Brass	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	White Bronze	0.15 dB	Beryllium Copper
Radiall USA, Inc. R161703000W	Threaded	N Plug	Male Pin	Gold	Plug to Plug	Male	11 GHz	Straight	Male Pin N Plug	N to N	Free Hanging (In-Line)	Same Series	50 Ohm	500 cycles	Brass	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	White Bronze	0.15 dB	Brass
Radiall USA, Inc. R161705000	Threaded	N Jack	Female Socket	Gold	Jack to Jack	Female	11 GHz	Straight	Female Socket N Jack	N to N	Free Hanging (In-Line)	Same Series	50 Ohm	500 cycles	Brass	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	White Bronze	0.15 dB	Beryllium Copper
