5501FE 008U500

Active

Belden Inc.

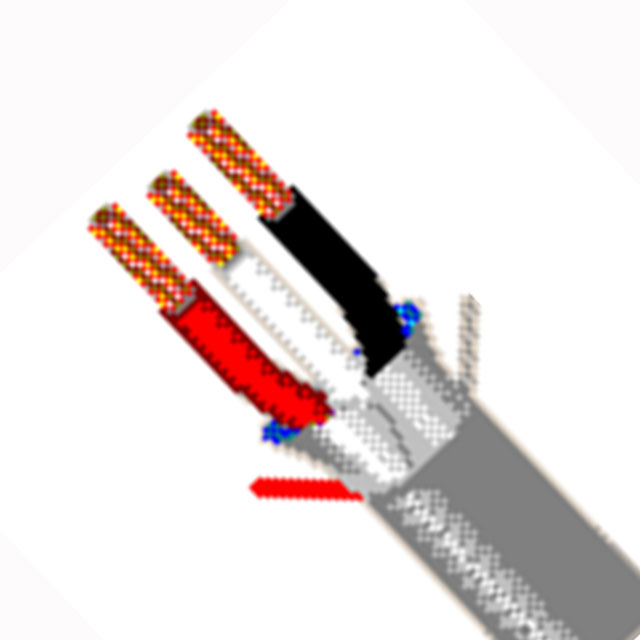

CABLE 3COND 22AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 22AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5501FE 008U500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	3.38 mm
Jacket (Insulation) Diameter	0.133 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Material	Voltage	Conductor Material	Usage	Jacket (Insulation) Material	Shield Coverage	Ratings	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Wire Gauge
Belden Inc. 5501FE 008U500	Aluminum	300 V	Copper Tinned	Security Sound	Poly-Vinyl Chloride (PVC) Riser	100 %	UL Style CMR	Foil	7	30 AWG	Drain Wire Rip Cord	Gray	Polypropylene (PP)	0.432 mm	0.017 in	3	500 '	152.4 m	3.38 mm	0.133 in	Multi-Conductor	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.32

General part information

3 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)
