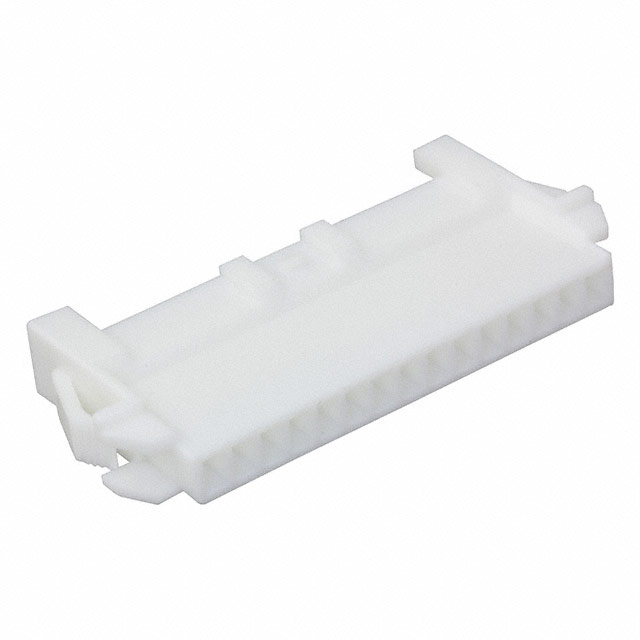

Specification	XARR-15V

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	15
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch	0.098 in

XARR Series

Part	Note	Fastening Type	Color	Pitch	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Number of Rows	Insulation Material	Contact Termination	Contact Type	Mounting Type
JST Sales America Inc. XARR-14V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	14	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-11V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	11	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-10VF	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	10	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount
JST Sales America Inc. XARR-08V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	8	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-06V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	6	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-02V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	2	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-04V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	4	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-12VF	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	12	1	Nylon Polyamide (PA)	Crimp	Male Pin
JST Sales America Inc. XARR-10V	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	10	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-06VF	Contacts Not Included	Latch Lock	Natural	0.098 in	Receptacle	85 °C	-25 °C	6	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount
