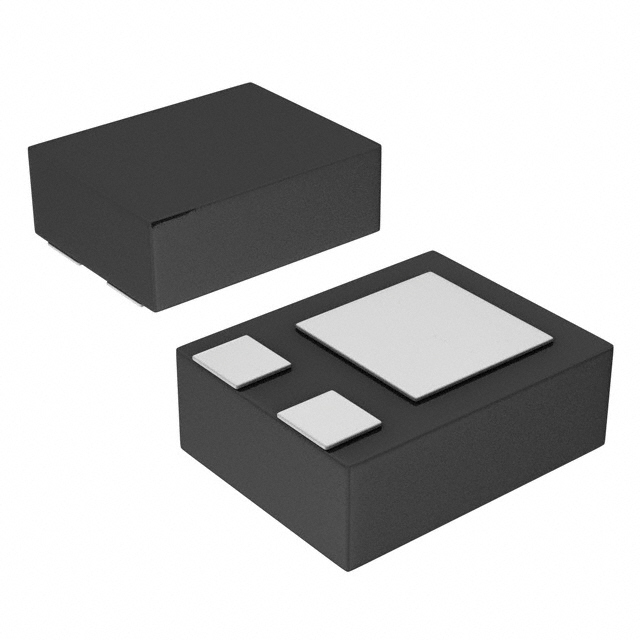

ZXTN26020DMFTA

Active

Diodes Inc

TRANS GP BJT NPN 20V 1.5A 3-PIN DFN EP T/R

Search across all available documentation for this part.

Active

Diodes Inc

TRANS GP BJT NPN 20V 1.5A 3-PIN DFN EP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTN26020DMFTA

Current - Collector (Ic) (Max) [Max]	1.5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	290 hFE
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	3-UDFN
Power - Max [Max]	1 W
Supplier Device Package	DFN1411-3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	290 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

NPN, 20V, 1.5A, DFN1411-3

Part	Supplier Device Package	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce	Vce Saturation (Max) @ Ib, Ic	Package / Case	Mounting Type	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]
Diodes Inc ZXTN26020DMFTA	DFN1411-3	NPN	290 hFE	290 mV	3-UDFN	Surface Mount	1 W	-55 °C	150 °C	1.5 A	20 V	100 nA
