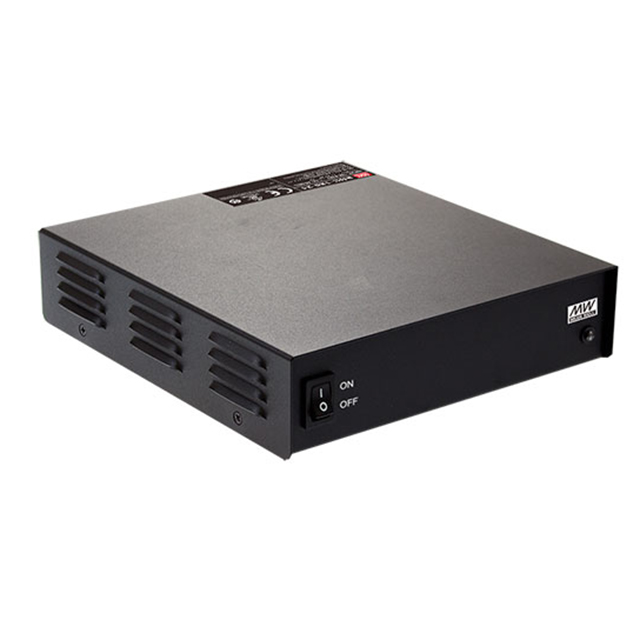

ENC-180 Series

Part	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Weight	Termination Style	Battery Chemistry	Battery Cell Voltage	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Features	Number of Cells	Mounting Type	Type	Power - Max	Charge Current - Max	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Nominal
MEAN WELL USA Inc. ENC-180-48	CB CE cULus EAC	70 °C	-30 °C	1150 g	Terminal Block	Lead Acid Lithium-Ion	48 V	1.96 in	7.01 in	7.56 in	LED Indicator	1	Desktop	Desktop	173 W	3 A	90 V	264 V	48 V
MEAN WELL USA Inc. ENC-180-12	CB CE cULus EAC	70 °C	-30 °C	1150 g	Terminal Block	Lead Acid Lithium-Ion	12 V	1.96 in	7.01 in	7.56 in	LED Indicator	1	Desktop	Desktop	173 W	12 A	90 V	264 V	12 V
MEAN WELL USA Inc. ENC-180-24	CB CE cULus EAC	70 °C	-30 °C	1150 g	Terminal Block	Lead Acid Lithium-Ion	24 V	1.96 in	7.01 in	7.56 in	LED Indicator	1	Desktop	Desktop	173 W	6 A	90 V	264 V	24 V
