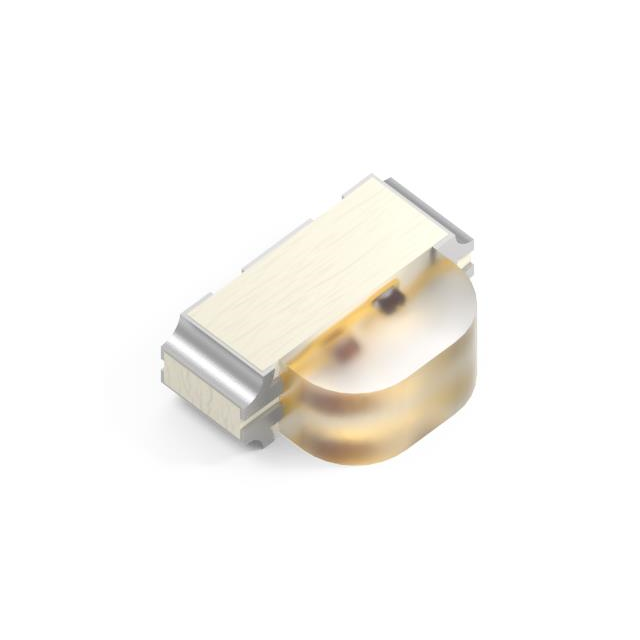

XZMDKVG56W
ActiveSunLED
LED GREEN/RED CLR CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKVG56W
ActiveSunLED
LED GREEN/RED CLR CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKVG56W |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 69 mcd |
| Millicandela Rating [custom] | 79 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.95 V |
| Wavelength - Dominant | 630 nm, 570 nm |
| Wavelength - Peak | 574 nm, 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.52 | ||
| 10 | $ 0.32 | |||
| 100 | $ 0.18 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 2000 | $ 0.13 | ||
| 6000 | $ 0.12 | |||
| 10000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
Description
General part information
XZMDKVG56 Series
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 3-SMD, No Lead
