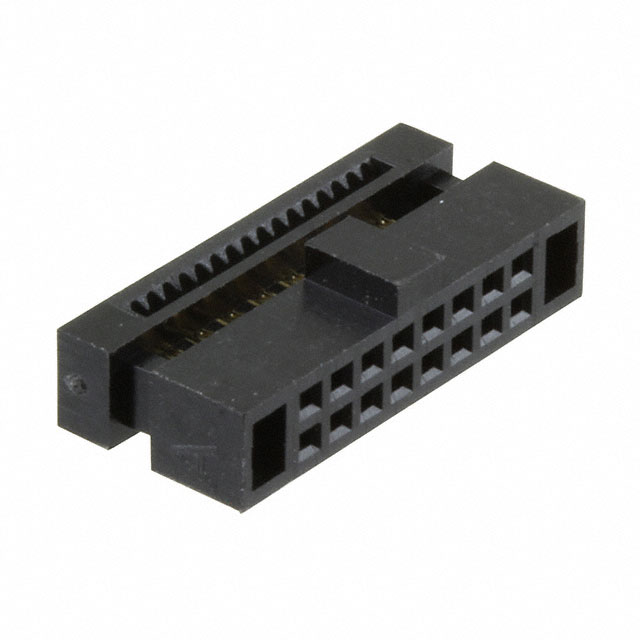

20021444-00016T4LF

Active

Amphenol ICC (FCI)

CONN RCPT 16POS IDC 30AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek127 productpresentation Other Related Document 10166143-00020C1LF +1

20021444-00016T4LF

Active

Amphenol ICC (FCI)

CONN RCPT 16POS IDC 30AWG GOLD

Deep-Dive with AI

Documentsminitek127 productpresentation Other Related Document 10166143-00020C1LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021444-00016T4LF

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Gauge	30 AWG
Wire Type	Ribbon Cable

20021444 Series

Part	Features	Row Spacing	Row Spacing	Number of Positions	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Cable Termination	Wire Gauge	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Wire Type	Contact Finish Thickness	Number of Positions
Amphenol ICC (FCI) 20021444-00008T4LF	Feed Through	1.27 mm	0.05 in	8	Black	Free Hanging (In-Line)	10 Áin	0.25 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00024T1LF	Feed Through	1.27 mm	0.05 in	24	Black	Free Hanging (In-Line)			Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable	Flash
Amphenol ICC (FCI) 20021444-00024T4LF	Feed Through	1.27 mm	0.05 in	24	Black	Free Hanging (In-Line)	10 Áin	0.25 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00006T8LF	Feed Through	1.27 mm	0.05 in	6	Black	Free Hanging (In-Line)	30 Áin	0.76 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00012T8LF	Feed Through	1.27 mm	0.05 in	12	Black	Free Hanging (In-Line)	30 Áin	0.76 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00016T4LF	Feed Through	1.27 mm	0.05 in		Black	Free Hanging (In-Line)	10 Áin	0.25 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable		16
Amphenol ICC (FCI) 20021444-00006T4LF	Feed Through	1.27 mm	0.05 in	6	Black	Free Hanging (In-Line)	10 Áin	0.25 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00012T1LF	Feed Through	1.27 mm	0.05 in	12	Black	Free Hanging (In-Line)			Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable	Flash
Amphenol ICC (FCI) 20021444-00014T4LF	Feed Through	1.27 mm	0.05 in	14	Black	Free Hanging (In-Line)	10 Áin	0.25 Ám	Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable
Amphenol ICC (FCI) 20021444-00014T1LF	Feed Through	1.27 mm	0.05 in	14	Black	Free Hanging (In-Line)			Female Socket	IDC	30 AWG	Receptacle	2	0.05 in	1.27 mm	Gold	Ribbon Cable	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.66
		10	$ 3.57
		25	$ 3.22
		50	$ 2.82

Description

General part information

20021444 Series

16 Position Rectangular Receptacle Connector IDC Gold 30 AWG
