2016-1201

Active

WAGO Corporation

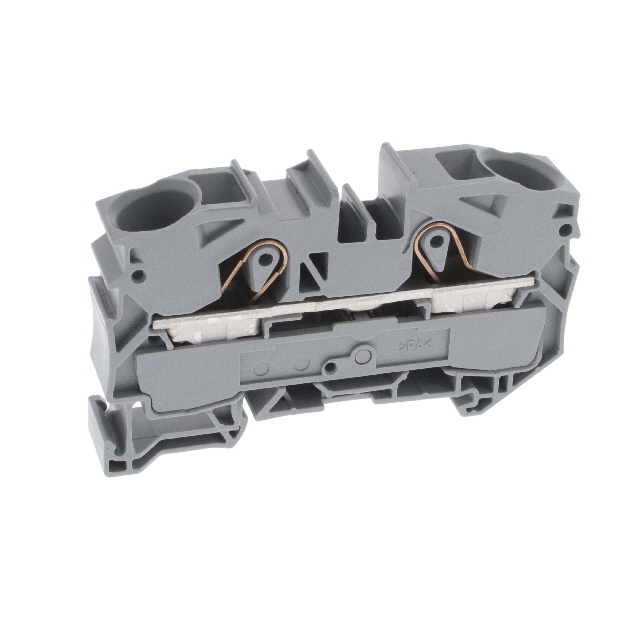

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Product Change Notice EN +1

2016-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A

Deep-Dive with AI

Documents3D Product Image EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2016-1201	2016-120 Series

Color	Gray	Green, Yellow, Gray
Current - IEC	90 A	90 A
Current - UL	85 A	85 A
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	2	2
Stripping Length [Max]	20 mm	20 mm
Stripping Length [Min]	18 mm	18 mm
Terminal - Width [y]	12 mm	12 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	Ground, Earth, Feed Through
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 AWG
Wire Gauge or Range - mm² [Max]	16 mm²	16 mm²
Wire Gauge or Range - mm² [Min]	6 mm²	6 mm²

2016-120 Series

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 4 AWG, 25 MM², CLAMP, 76 A

Part	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Material - Insulation	Type	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width [y]	Termination Style	Color	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Voltage - UL	Current - UL	Current - IEC	Voltage - IEC
WAGO Corporation 2016-1207	16 mm²	6 mm²	Polyamide (PA66), Nylon 6/6	Ground, Earth	18 mm	20 mm	12 mm	Push In, Spring	Green, Yellow	1	14 AWG	6 AWG	2
WAGO Corporation 2016-1201	16 mm²	6 mm²	Polyamide (PA66), Nylon 6/6	Feed Through	18 mm	20 mm	12 mm	Push In, Spring	Gray	1	14 AWG	6 AWG	2	600 V	85 A	90 A	800 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.42
		10	$ 5.85
		100	$ 4.85
		1000	$ 3.71
Newark	Each	1	$ 5.78
		10	$ 5.37
		25	$ 5.14
		50	$ 4.41

Description

General part information

2016-120 Series

The 2016-1201 from Wago is 2 conductor through terminal block. The housing material is polyamide (PA 6.6). It has 2 connection points and 1 potential point and it is suitable for Ex e II applications.
