AC164127-6

Active

Microchip Technology

DEMONSTRATION BOARD, TOUCH-SCREEN LCD, GRAPHICS DISPLAY POWERTIP 4.3""

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AC164127 Series

The AC164127-6 is a graphics display powertip 4.3 480x272 demonstration board for evaluating Microchip technologys graphic display solution and graphics library for 16bit and 32bit microcontrollers. It is an expansion board compatible with the PIC24FJ256DA210 Development Board (DM240312), and graphics LCD controller PICtail Plus SSD1926 Board (AC164127-5)

Technical Specifications

Parameters and characteristics for this part

Specification	AC164127-6

Contents	Board
Function	LCD Touch Screen
Primary Attributes - Resolution Height	272
Primary Attributes - Resolution Type	WQVGA
Primary Attributes - Resolution Width	480
Primary Attributes - Screen Size	4.3 in
Secondary Attributes	Parallel Interface(s)
Supplied Contents	Board(s)
Type	Display

AC164127 Series

Part	Supplied Contents	Type	Secondary Attributes	Contents	Function	Primary Attributes - Resolution Type	Primary Attributes - Resolution Width	Primary Attributes - Screen Size	Primary Attributes - Resolution Height	Embedded	Utilized IC / Part	Primary Attributes	Embedded Bit Width
Microchip Technology AC164127-8	Board(s)	Display	Resistive 4-Wire Touch Screen	Board	LCD Touch Screen	VGA	640 px	5.7 in	480 px	No
Microchip Technology AC164127-9	Board(s)	Display	Resistive 4-Wire Touch Screen	Board	LCD Touch Screen	WVGA	800 px	7 in	480 px		AR1020
Microchip Technology AC164127-7	Board(s)	Display		Board	LCD Controller						S1D13517	Explorer 16 Dev Boards For Use With PIC32 Starter KIT For Use With PIC32 Starter KIT and Explorer 16 Dev Boards

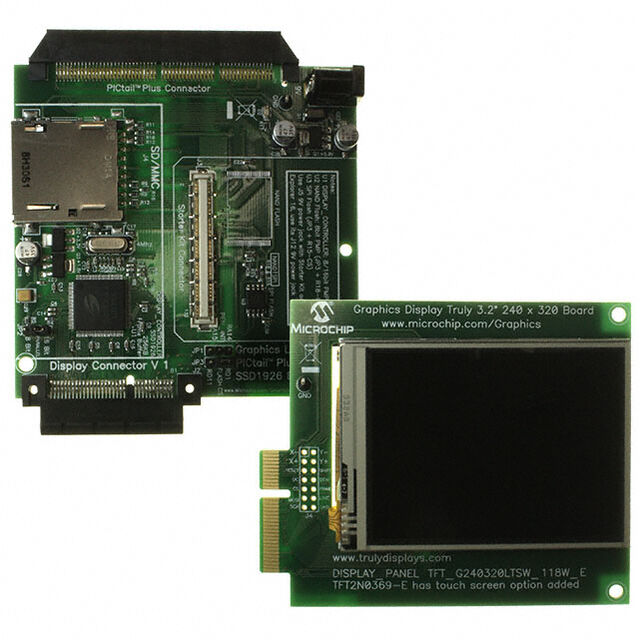

Microchip Technology AC164127-3	Board(s)	Display	Parallel Interface(s)	Board	LCD Touch Screen	QVGA	320 px	3.2 in	240 px	16 MCU Yes	AC164127-4 AC164127-4 + AC164127-5 Bundle AC164127-5		16 bit 32 bit
Microchip Technology AC164127-6	Board(s)	Display	Parallel Interface(s)	Board	LCD Touch Screen	WQVGA	480	4.3 in	272
Microchip Technology AC164127-4	Board(s)	Display	Parallel Interface(s)	Board	LCD Touch Screen	QVGA	320 px	3.2 in	240 px	16 MCU Yes			16 bit 32 bit
Microchip Technology AC164127-5	Board(s)	Display		Board	LCD Controller					16 MCU Yes	SSD1926		16 bit 32 bit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Graphics Quick Ref Guide

AC164127-6 | Datasheet
