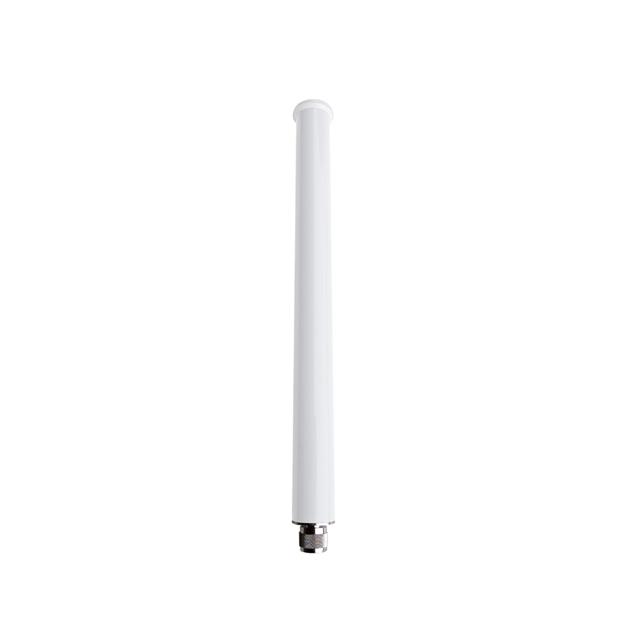

OC24594-FRTN
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ WHIP STR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OC24594-FRTN
ObsoleteTE Connectivity Raychem Cable Protection
RF ANT 2.4GHZ/5.4GHZ WHIP STR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OC24594-FRTN |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Bluetooth, Wi-Fi |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.5 GHz, 5.925 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 4.1 dBi |
| Height (Max) | 75.9 mm |
| Height (Max) [Max] | 2.988 in |
| Ingress Protection | IP54 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi, Bluetooth |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OC24594 Series
RF ANTENNA Bluetooth, Wi-Fi Whip, Straight RP-TNC Male Connector Mount
Documents
Technical documentation and resources
