2917531

Active

Phoenix Contact

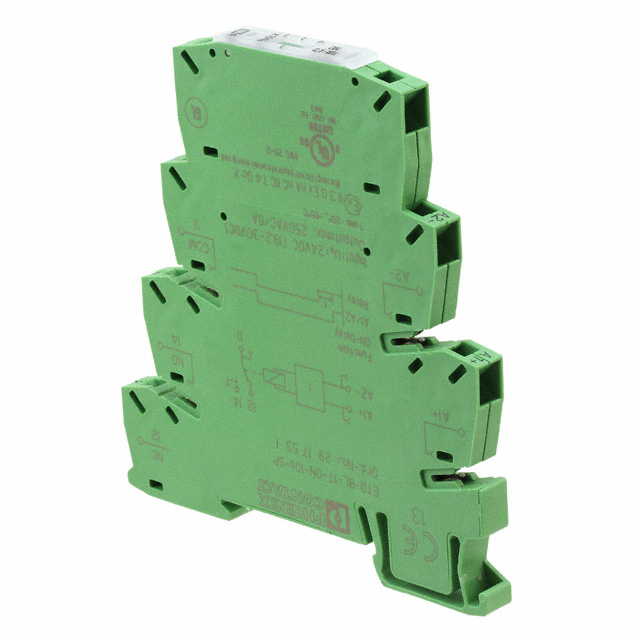

RELAY TIME DELAY 10SEC 6A 250V

Search across all available documentation for this part.

Documents2917531

Active

Phoenix Contact

RELAY TIME DELAY 10SEC 6A 250V

Documents2917531

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2917531	29175 Series

Contact Rating @ Voltage	6 A, 250 VAC	6 - 250 A
Delay Time [Max]	10 s	10 - 300 Min
Delay Time [Min]	0.1 Sec	0.1 - 3 Min
Function	On-Delay	Repeat Cycle, On-Delay
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Spring Terminal	Screw Terminal, Spring Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	24 VDC	24 VDC

RELAY TIME DELAY 30MIN 6A 250V

Part	Contact Rating @ Voltage	Timing Initiate Method	Relay Type	Function	Delay Time [Min]	Delay Time [Max]	Timing Adjustment Method	Mounting Type	Termination Style	Voltage - Supply
Phoenix Contact 2917515	6 A, 250 VAC	Input Voltage	Mechanical Relay	Repeat Cycle	0.3 Min	30 Min	Screwdriver Slot	DIN Rail	Screw Terminal	24 VDC
Phoenix Contact 2917528	6 A, 250 VAC	Input Voltage	Mechanical Relay	Repeat Cycle	3 Cyc	300 Min	Screwdriver Slot	DIN Rail	Screw Terminal	24 VDC
Phoenix Contact 2917531	6 A, 250 VAC	Input Voltage	Mechanical Relay	On-Delay	0.1 Sec	10 s	Screwdriver Slot	DIN Rail	Spring Terminal	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 10 Sec Delay 6A @ 250VAC DIN Rail

Technical documentation and resources
