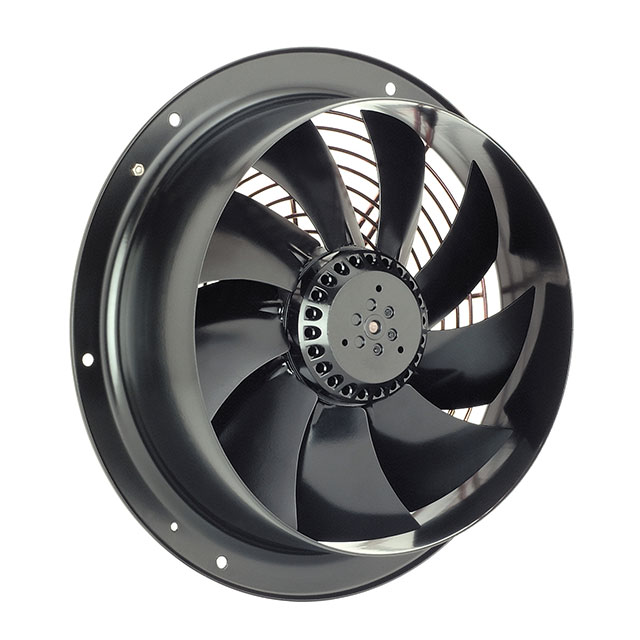

W2E200-CH38-70

Active

ebm-papst Inc.

FAN AXIAL 280X80MM 230VAC WIRE

W2E200-CH38-70

Active

ebm-papst Inc.

FAN AXIAL 280X80MM 230VAC WIRE

Description Specifications Series Pricing CAD Documents

Description

General part information

W2E200 Series

Fan Tubeaxial 230VAC Round - 280mm Dia Ball 600.0 CFM (16.80m³/min) 2 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	W2E200-CH38-70

Air Flow	600 CFM
Approval Agency	VDE, CSA, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Steel
Noise	62 dB
Power (Watts)	77 W
Size / Dimension Diameter	280 mm
Size / Dimension Shape	Round
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	230 VAC
Weight	3.1 lbs
Width	80 mm

W2E200 Series

Part	Current Rating	Material - Blade	Material - Frame	Bearing Type	Size / Dimension Shape	Size / Dimension Diameter	Termination Leads Count	Termination Type	Termination	Width	Approval Agency	Ingress Protection	Features	Static Pressure	Power (Watts)	Fan Type	Operating Temperature (Min)	Operating Temperature (Max)	RPM	Voltage - Rated	Size / Dimension Length	Size / Dimension Height	Weight	Air Flow	Noise
ebm-papst Inc. W2E200-CF02-02	0.28 A	Steel	Steel	Ball	Round	280 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	86.2 mm	CE EAC	IP44	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	61 W	Tubeaxial	-13 °F	167 °F	3120 RPM	230 VAC
ebm-papst Inc. W2E200-HK38-01A	0.35 A	Steel	Aluminum	Ball	Square				Terminal Block	80 mm	CCC CE CSA EAC UL VDE	IP44	Capacitor Thermal Overload Protection (TOP)	0.381 in H2O	80 W	Tubeaxial	-13 °F	149 °F	2800 RPM	230 VAC	225 mm	225 mm
ebm-papst Inc. W2E200-CF02-01	0.28 A	Steel	Steel	Ball	Round	280 mm				80 mm	CCC CE EAC	IP44			61 W	Tubeaxial	-13 °F	167 °F	3120 RPM	230 VAC			5.2 lbs
ebm-papst Inc. W2E200-HH38-05	360 mA	Steel	Aluminum	Ball	Square				Terminal Block	88.7 mm	CE CSA UL VDE	IP44	Capacitor Thermal Overload Protector (TOP)	0.482 in H2O	85 W	Tubeaxial	-13 °F	149 °F	2800 RPM	230 VAC	260 mm	260 mm
ebm-papst Inc. W2E200-HH38-13	360 mA	Steel	Aluminum	Ball	Square				Terminal Block	80 mm	CCC CE CSA UL VDE	IP44	Capacitor Thermal Overload Protector (TOP)	0.482 in H2O	85 W	Tubeaxial	-13 °F	149 °F	2800 RPM	230 VAC	260 mm	260 mm
ebm-papst Inc. W2E200-HH86-01		Steel	Aluminum	Ball	Square				Terminal Block	80 mm	CCC CE CSA EAC UL VDE				80 W	Tubeaxial			2800 RPM	115 V	225 mm	225 mm	4.7 lbs	607 CFM	61 dB
ebm-papst Inc. W2E200-CI38-73	0.37 A	Steel	Steel	Ball	Round	280 mm	4	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	89 mm	CE CSA UL	IP44	Capacitor Thermal Overload Protector (TOP)	0.602 in H2O	83 W	Tubeaxial	-13 °F	149 °F	2900 RPM	230 VAC
ebm-papst Inc. W2E200-CH38-70		Steel		Ball	Round	280 mm	2 leads	Wire Leads	2 Wire Leads	80 mm	CSA UL VDE				77 W	Tubeaxial				230 VAC			3.1 lbs	600 CFM	62 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Compact Fans for AC, DC, and EC Catalog

W2E200-CH38-70 | Datasheet
