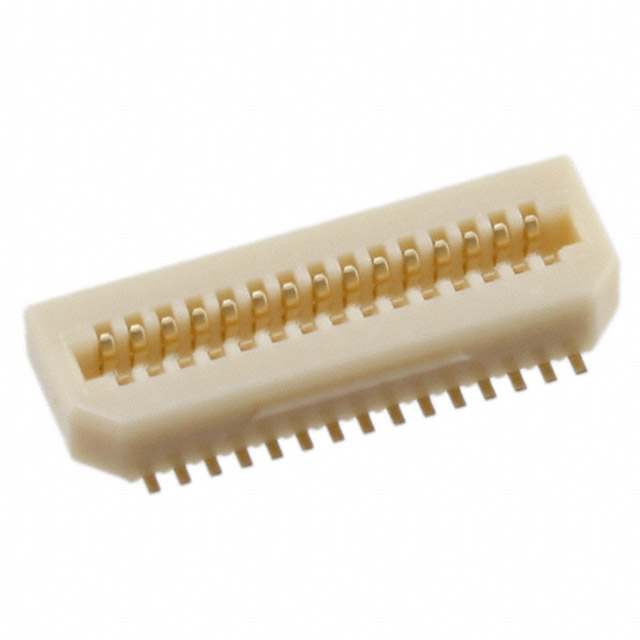

AXN330038S

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXN330038S

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights [z]	4 mm, 3 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Height Above Board	Height Above Board	Contact Finish	Features	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Mated Stacking Heights [z]	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXN330130S	Surface Mount	0.205 in	5.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2	6 mm 7 mm 8 mm 13 mm 14 mm
Panasonic Electric Works AXN330C038S	Surface Mount	0.087 in	2.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2		3 mm 4 mm 5 mm
Panasonic Electric Works AXN330C038P	Surface Mount	0.087 in	2.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2		3 mm 4 mm 5 mm
Panasonic Electric Works AXN330130P	Surface Mount	0.205 in	5.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2	6 mm 7 mm 8 mm 13 mm 14 mm
Panasonic Electric Works AXN330C130P	Surface Mount			Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2	6 mm 7 mm 8 mm 13 mm 14 mm		0.106 in	2.7 mm
Panasonic Electric Works AXN330038S	Surface Mount	0.087 in	2.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2		3 mm 4 mm 5 mm
Panasonic Electric Works AXN330238J	Surface Mount	0.205 in	5.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2	3.5 mm 4.5 mm 5.5 mm
Panasonic Electric Works AXN330C238J	Surface Mount	0.205 in	5.2 mm	Gold	Board Guide	Socket Center Strip Contacts	30	0.8 mm	0.031 in	2	3.5 mm 4.5 mm 5.5 mm
