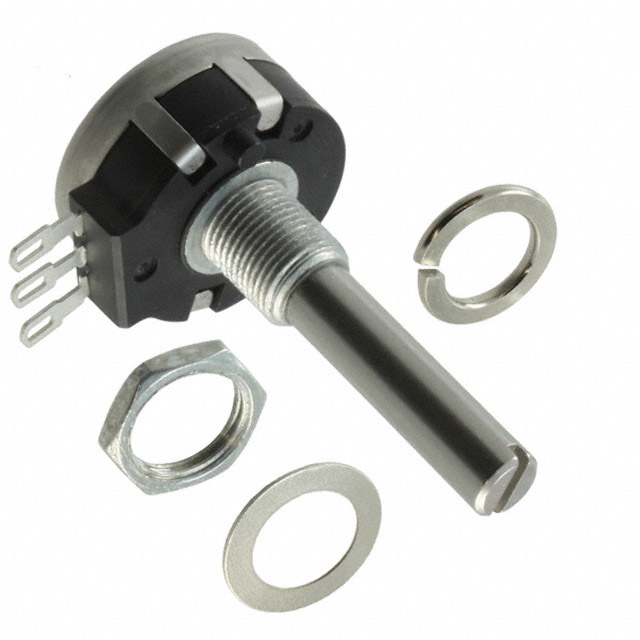

P232-DEC35BR5K

Active

TT Electronics/BI

POT 5K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P232-DEC35BR5K

Active

TT Electronics/BI

POT 5K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.28
		10	$ 10.88
		25	$ 9.67
		40	$ 8.87
		80	$ 8.06
		320	$ 6.45
		640	$ 6.25
		960	$ 5.84

Description

General part information

P232 Series

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W Solder Lug

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P232-DEC35BR5K	P232 Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter [diameter]	0.25 in	0.25 in
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	35 mm	20 - 35 mm
Actuator Length [z]	1.378 in	0.787 - 1.378 in
Actuator Type	Slotted	Slotted, Flatted
Adjustment Type	User Defined	User Defined
Built in Switch	False	False
Bushing Thread	M9 x 0.75	M9 x 0.75
Features	Sealed	Sealed
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.5 W	0.5 - 300 W
Power (Watts)	0.5 W	0.3 - 0.5 W
Resistance (Ohms)	5 kOhms	5 - 100 kOhms
Resistance (Ohms)	-	1M, 10k
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [diameter]	0.906 in	0.906 in
Size - Body [diameter]	23 mm	23 mm
Taper	Linear	Linear, Logarithmic
Termination Style	Solder Lug	Solder Lug
Tolerance	10 %	10 %

P232 Series

POT 50K OHM 1/2W PLASTIC LINEAR

Part	Adjustment Type	Resistance (Ohms)	Number of Gangs	Resistive Material	Termination Style	Features	Tolerance	Rotation	Bushing Thread	Power (Watts)	Power (Watts)	Actuator Diameter	Actuator Diameter [diameter]	Number of Turns	Taper	Actuator Type	Actuator Length [z]	Actuator Length [z]	Size - Body [diameter]	Size - Body [diameter]	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI P232-SEC20BR50K	User Defined	50 kOhms	1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	20 mm	0.787 in	0.906 in	23 mm
TT Electronics/BI P232-DEA20AR1MEG	User Defined		1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	300 mW	0.3 W	6.35 mm	0.25 in	1	Logarithmic	Slotted	20 mm	0.787 in	0.906 in	23 mm	1M
TT Electronics/BI P232-SEC20BR1MEG	User Defined		1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	20 mm	0.787 in	0.906 in	23 mm	1M
TT Electronics/BI P232-DEC35BR5K	User Defined	5 kOhms	1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	35 mm	1.378 in	0.906 in	23 mm
TT Electronics/BI P232-SEC20BR5K	User Defined	5 kOhms	1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	20 mm	0.787 in	0.906 in	23 mm
TT Electronics/BI P232-SFC20BR5K	User Defined	5 kOhms	1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Flatted	20 mm	0.787 in	0.906 in	23 mm
TT Electronics/BI P232-DEC20BR10K	User Defined		1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	20 mm	0.787 in	0.906 in	23 mm	10k
TT Electronics/BI P232-SEC22BR10K	User Defined		1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Slotted	22 mm	0.866 in	0.906 in	23 mm	10k
TT Electronics/BI P232-DFC35AR100K	User Defined	100 kOhms	1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	300 mW	0.3 W	6.35 mm	0.25 in	1	Logarithmic	Flatted	35 mm	1.378 in	0.906 in	23 mm
TT Electronics/BI P232-SFC25BR10K	User Defined		1	Conductive Plastic	Solder Lug	Sealed	10 %	300 ░	M9 x 0.75	0.5 W	0.5 W	6.35 mm	0.25 in	1	Linear	Flatted			0.906 in	23 mm	10k	0.984 in	25 mm
