GFTSX-18

Active

Curtis Industries

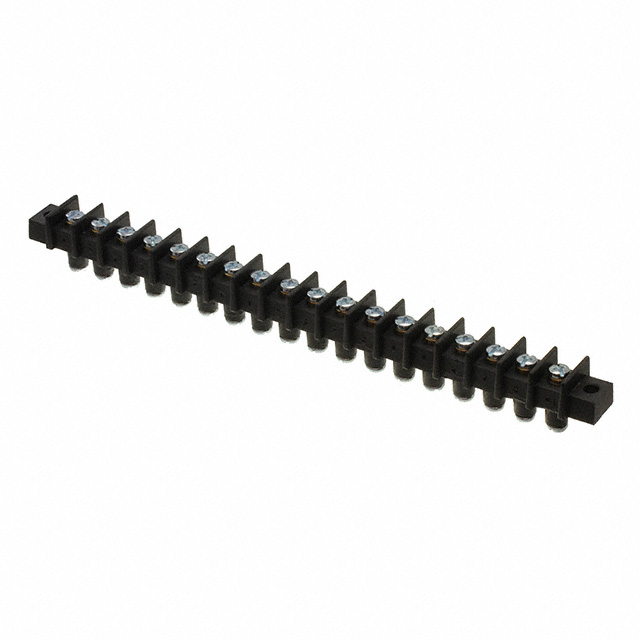

CONN BARRIER STRP 18CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTSX-18

Active

Curtis Industries

CONN BARRIER STRP 18CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 26.00

Description

General part information

GFTSX Series

18 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GFTSX-18	GFTSX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Insulated, Threaded	Insulated, Threaded
Color	Black	Black
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	18	3 - 25
Number of Rows	1	1
Number of Wire Entries	18	3 - 25
Number of Wire Entries	-	23
Operating Temperature	110 °C	110 °C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

GFTSX Series

CONN BARRIER STRP 10CIRC 0.438"

Part	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Barrier Type	Mounting Type	Material Flammability Rating	Operating Temperature	Bottom Termination	Color	Number of Rows	Terminal Screw Material	Features	Current Rating (Amps)	Number of Circuits	Terminal Block Type	Pitch [x]	Pitch [x]	Material - Insulation	Top Termination	Number of Wire Entries [custom]
Curtis Industries GFTSX-10	10	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	10	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-3	3	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	3	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-13	13	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	13	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-23		12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	23	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws	23
Curtis Industries GFTSX-25	25	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	25	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-19	19	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	19	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-17	17	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	17	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
Curtis Industries GFTSX-18	18	12 AWG	22 AWG	2 Wall (Dual)	Chassis, Panel	UL94 V-0	110 °C	Insulated, Threaded	Black	1	Steel	Flange	20 A	18	Barrier Block	11.12 mm	0.438 in	Polyphenylene Oxide (PPO)	Screws
