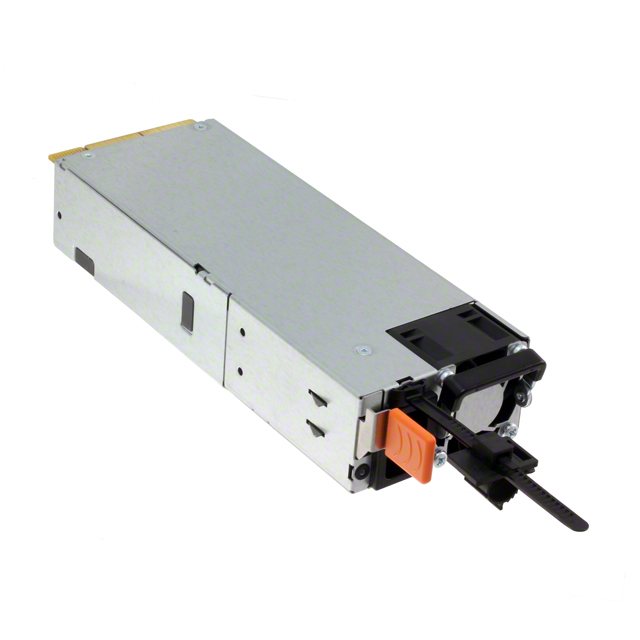

DPS-2000CB A

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 2000W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 2000W

Technical Specifications

Parameters and characteristics for this part

Specification	DPS-2000CB A

Applications	ITE (Commercial)
Approval Agency	CB, CCC, KC, TUV, CE, UR
Current - Output 1	16 A
Efficiency	94 %
Features	80 Plus® Platinum, PFC, Remote Sense, Remote On/Off, Standby Output, Universal Input, PMBus™
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	2000 W
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195 mm
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

Part	Approval Agency	Type	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Current - Output 1	Efficiency	Number of Outputs	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1
Delta Electronics DPS-2000CB A	CB CCC CE KC TUV UR	Front End	80 Plus® Platinum PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	7.68 "	1.54 "	2.89 in	195 mm	39 mm	73.5 mm	ITE (Commercial)	16 A	94 %	1	Rack Mount	90 VAC	264 VAC	2000 W	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
