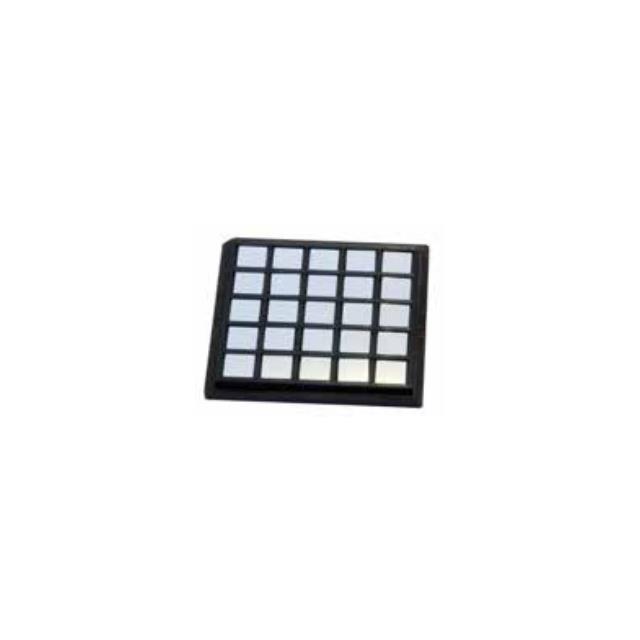

1C5711.T

Active

SMC Diode Solutions

DIODE SCHOTTKY 50V 1MA DIE

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 50V 1MA DIE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1C5711.T	1C5711 Series

Capacitance @ Vr, F	2 pF	2 pF
Current - Average Rectified (Io)	1 mA	1 mA
Current - Reverse Leakage @ Vr	200 nA	200 nA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	125 °C	125 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	Die	Die
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	Die	Die
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	50 V	50 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 - 410 V

DIODE SCHOTTKY 50V 1MA DIE

Part	Supplier Device Package	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Speed	Speed	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
SMC Diode Solutions 1C5711.T	Die	2 pF	200 nA	Schottky	-55 °C	125 °C	1 mA	1 V	Die	Any Speed	200 mA	Surface Mount	50 V
SMC Diode Solutions 1C5711AG.T2	Die	2 pF	200 nA	Schottky	-55 °C	125 °C	1 mA	410 mV	Die	Any Speed	200 mA	Surface Mount	50 V
SMC Diode Solutions 1C5711AG.T1	Die	2 pF	200 nA	Schottky	-55 °C	125 °C	1 mA	410 mV	Die	Any Speed	200 mA	Surface Mount	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 50 V 1mA Surface Mount Die
