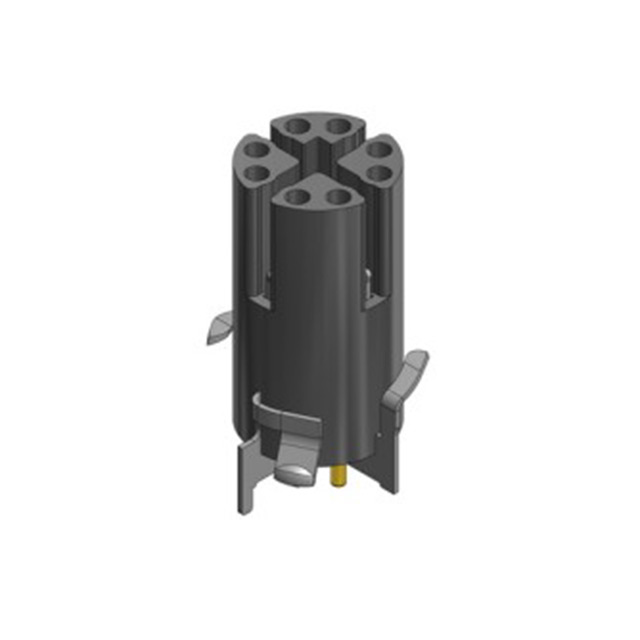

43-02362

Active

Amphenol CONEC

CONN FMALE INSERT 8P GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN FMALE INSERT 8P GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	43-02362

Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	0.5 A
Features	Board Guide, Insert Only, Requires Shell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Liquid Crystal Polymer - Glass Fiber (LCP-GF)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-25 °C
Orientation	X
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	48 VDC

Part	Termination	Orientation	Current Rating (Amps)	Ingress Protection	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shielding	Number of Positions	Features	Mounting Type	Contact Material	Insert Material	Contact Finish - Mating	Material Flammability Rating
Amphenol CONEC 43-02363	Solder	X	0.5 A	IP67 - Dust Tight Waterproof	48 VDC	Female Sockets Insert	203 °F	-25 °C	M12-8	Unshielded	8	Board Guide Insert Only Requires Shell	Through Hole	Copper Zinc	Liquid Crystal Polymer - Glass Fiber (LCP-GF)	Gold
Amphenol CONEC 43-02362	Solder	X	0.5 A	IP67 - Dust Tight Waterproof	48 VDC	Female Sockets Insert	203 °F	-25 °C	M12-8	Unshielded	8	Board Guide Insert Only Requires Shell	Surface Mount	Copper Zinc	Liquid Crystal Polymer - Glass Fiber (LCP-GF)	Gold	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	70	$ 11.51

General part information

8 Position Circular Connector Insert, Female Sockets Solder
