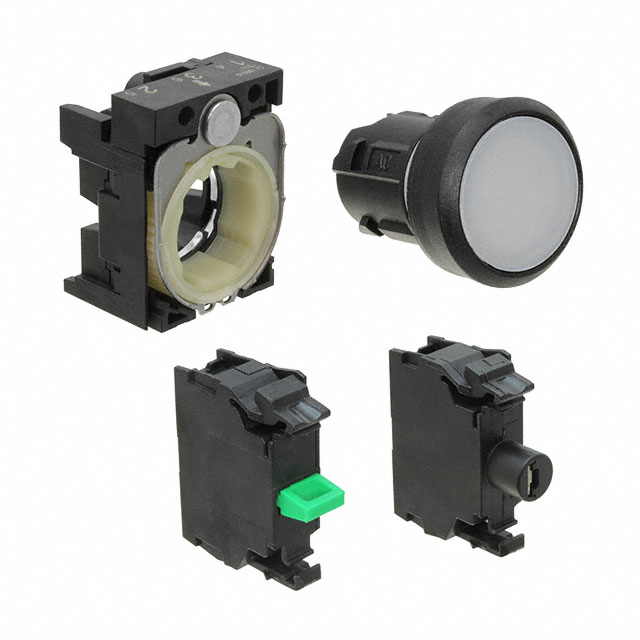

45-1231.11N6.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45-1231.11N6.000.101

Active

EAO

SWITCH PUSH SPST-NO 10A 500V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.64
		10	$ 24.82
LCSC	Piece	1	$ 10.71

Description

General part information

45-1231 Series

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-1231.11N6.000.101	45-1231 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPST-NO	SPST-NO, SPST-NC
Color - Actuator/Cap	Clear	Clear, Clear (Red Filter/Diffuser), Clear (Yellow Filter/Diffuser)
Current Rating (Amps)	10 A	10 A
Illumination Type, Color	White, LED	White, LED, Red, Green, Yellow, Blue
Illumination Voltage (Nominal)	24 VAC/DC	24 - 230 VAC/DC
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	3000000 Cycles	3000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

45-1231 Series

SWITCH PUSH SPST-NO 10A 500V

Part	Voltage Rating - DC	Mounting Type	Type	Voltage Rating - AC	Actuator Marking	Mechanical Life	Circuit	Switch Function	Illumination Voltage (Nominal)	Ingress Protection	Actuator Type	Illumination Type, Color	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]
EAO 45-1231.21N6.000.401	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, White	Spring Terminal	Clear	10 A	70 °C	-25 °C
EAO 45-1231.11E6.000.101	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, Red	Screw Terminal	Clear (Red Filter/Diffuser)	10 A	70 °C	-25 °C
EAO 45-1231.31H6.000.101	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	Green, LED	Screw Terminal	Clear	10 A	70 °C	-25 °C
EAO 45-1231.31G6.000.401	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, Yellow	Spring Terminal	Clear (Yellow Filter/Diffuser)	10 A	70 °C	-25 °C
EAO 45-1231.11H8.000.401	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	230 VAC	IP66, IP67, IP69K	Button, Flush, Round	Green, LED	Spring Terminal	Clear	10 A	70 °C	-25 °C
EAO 45-1231.11N6.000.101	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, White	Screw Terminal	Clear	10 A	70 °C	-25 °C
EAO 45-1231.31G6.000.101	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, Yellow	Screw Terminal	Clear (Yellow Filter/Diffuser)	10 A	70 °C	-25 °C
EAO 45-1231.31E8.000.102	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NC	On-Mom	230 VAC	IP66, IP67, IP69K	Button, Flush, Round	LED, Red	Screw Terminal	Clear (Red Filter/Diffuser)	10 A	70 °C	-25 °C
EAO 45-1231.31E6.000.402	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NC	On-Mom	24 VAC/DC	IP66, IP67, IP69K	Button, Flush, Round	LED, Red	Spring Terminal	Clear (Red Filter/Diffuser)	10 A	70 °C	-25 °C
EAO 45-1231.31K8.000.101	500 V	Panel Mount, Front	Illuminated, Standard	500 V	No Marking	3000000 Cycles	SPST-NO	Off-Mom	230 VAC	IP66, IP67, IP69K	Button, Flush, Round	LED, White	Screw Terminal	Clear	10 A	70 °C	-25 °C
