TB67S512FTAG,EL
ActiveToshiba Semiconductor and Storage

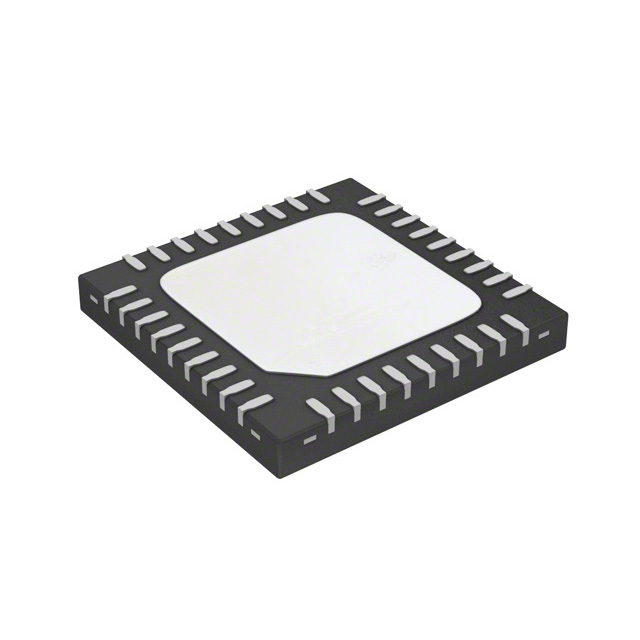

IC MOTOR DRIVER 36WQFN
Deep-Dive with AI
Search across all available documentation for this part.
TB67S512FTAG,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRIVER 36WQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67S512FTAG,EL |
|---|---|
| Applications | General Purpose |
| Current - Output | 2 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 36-WFQFN Exposed Pad |
| Step Resolution | 1/4, 1/2, 1 |
| Supplier Device Package | 36-WQFN (6x6) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 35 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
