2HX-750-2-YL-J-2
ActiveBRADY
SLEEVE, 0.75 IN DIA X 1 IN W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2HX-750-2-YL-J-2
ActiveBRADY
SLEEVE, 0.75 IN DIA X 1 IN W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2HX-750-2-YL-J-2 | 2HX-750 Series |
|---|---|---|
| - | - | |
| Color | Yellow | Black, White, Yellow |
| Label Size | - | 17.8 mm |
| Label Size | - | 0.7 " |
| Label Size | - | 9.5 mm |
| Label Size | - | 0.38 " |
| Label Size | - | 0.38 - 17.8 mm |
| Label Size [Max] | 17.8 mm | 0.7 - 17.8 mm |
| Label Size [Max] | 0.7 " | 0.7 " |
| Label Size [Min] | 9.5 mm | 0.38 - 9.5 mm |
| Label Size [Min] | 0.38 " | 0.38 " |
| Label Size [x] | 1 in | 0.5 - 1 " |
| Label Size [x] | 25.4 mm | 12.7 - 50.8 mm |
| Label Size [y] | 1.25 " | 1.25 - 31.8 mm |
| Label Size [y] | 31.8 mm | 1.25 - 31.8 " |
| Label Type | Heat Shrinkable | Heat Shrinkable |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 120 °C | 120 - 135 °C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
2HX-750 Series
SLEEVE, 0.75 IN DIA X 0.5 IN W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Label Size [Max] [diameter] | Label Size [Max] [diameter] | Label Size [x] | Label Size [Min] [diameter] | Label Size [y] | Label Size [Min] [diameter] | Label Size [y] | Label Size [x] | Label Type | Material | Label Size [diameter] | Label Size [Min] | Label Size [Max] | Label Size [Max] | Label Size [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRADY 2HX-750-2-BK-4 | -40 °C | 120 °C | Black | 17.8 mm | 0.7 " | 0.5 " | 9.5 mm | 31.8 mm | 0.38 " | 1.25 " | 12.7 mm | Heat Shrinkable | Polyolefin (PO) | |||||
BRADY 2HX-750-2-WT-3 | -40 °C | 120 °C | White | 0.67 in | 1.25 " | 31.8 mm | 17 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 0.7 in, 9.5 mm, 17.8 mm | ||||||||
BRADY 2HX-750-2-WT-J-3 | -40 °C | 120 °C | White | 0.67 in | 1.25 " | 31.8 mm | 17 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 0.7 in, 9.5 mm, 17.8 mm | ||||||||
BRADY 2HX-750-2-YL-J-2 | -40 °C | 120 °C | Yellow | 1 in | 1.25 " | 31.8 mm | 25.4 mm | Heat Shrinkable | Polyolefin (PO) | 9.5 mm | 17.8 mm | 0.7 " | 0.38 " | |||||
BRADY 2HX-750-2-BK | -40 °C | 120 °C | Black | 1.25 ", 31.8 mm | 50.8 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 9.5 mm | 0.7 in, 17.8 mm | |||||||||
BRADY 2HX-750-2-WT-2 | ||||||||||||||||||
BRADY 2HX-750-2-WT-SC | -40 °C | 120 °C | White | 1.25 ", 31.8 mm | 50.8 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 9.5 mm | 0.7 in, 17.8 mm | |||||||||
BRADY 2HX-750-2.3-WT | -40 °C | 120 °C | White | 1.25 ", 31.8 mm | 50.8 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 9.5 mm | 0.7 in, 17.8 mm | |||||||||
BRADY 2HX-750-2.3-YL | -55 °C | 135 °C | Yellow | 1.25 ", 31.8 mm | 50.8 mm | Heat Shrinkable | Polyolefin (PO) | 0.38 in, 9.5 mm | 0.7 in, 17.8 mm | |||||||||
BRADY 2HX-750-2.3-WT-2 | -55 °C | 135 °C | White | 1 in | 1.25 " | 31.8 mm | 25.4 mm | Heat Shrinkable | Polyolefin (PO) | 9.5 mm | 17.8 mm | 0.7 " | 0.38 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4767.69 | |
Description
General part information
2HX-750 Series

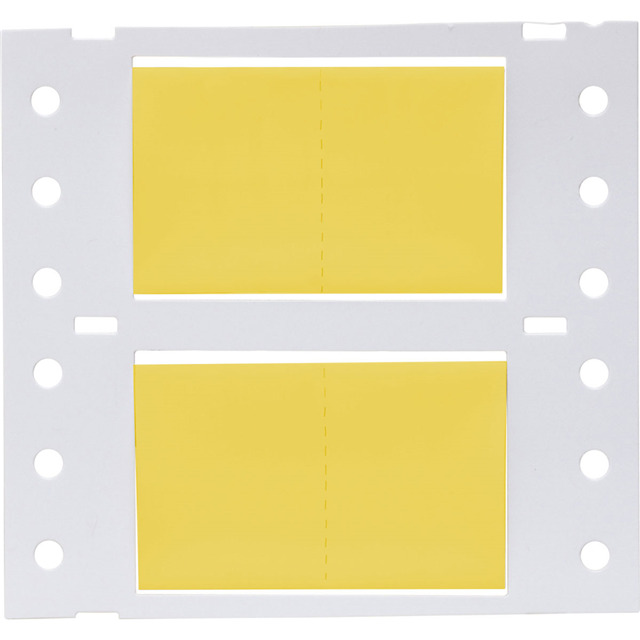

Yellow Heat Shrinkable Label 1.00" W x 1.25" H (25.4mm x 31.8mm); Cable O.D. 0.38" ~ 0.70" (9.5mm ~ 17.8mm)
