2HX-750-2.3-WT-2

Active

BRADY

SLEEVE, 0.75 IN DIA X 1.15 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.75 IN DIA X 1.15 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 574.93

General part information

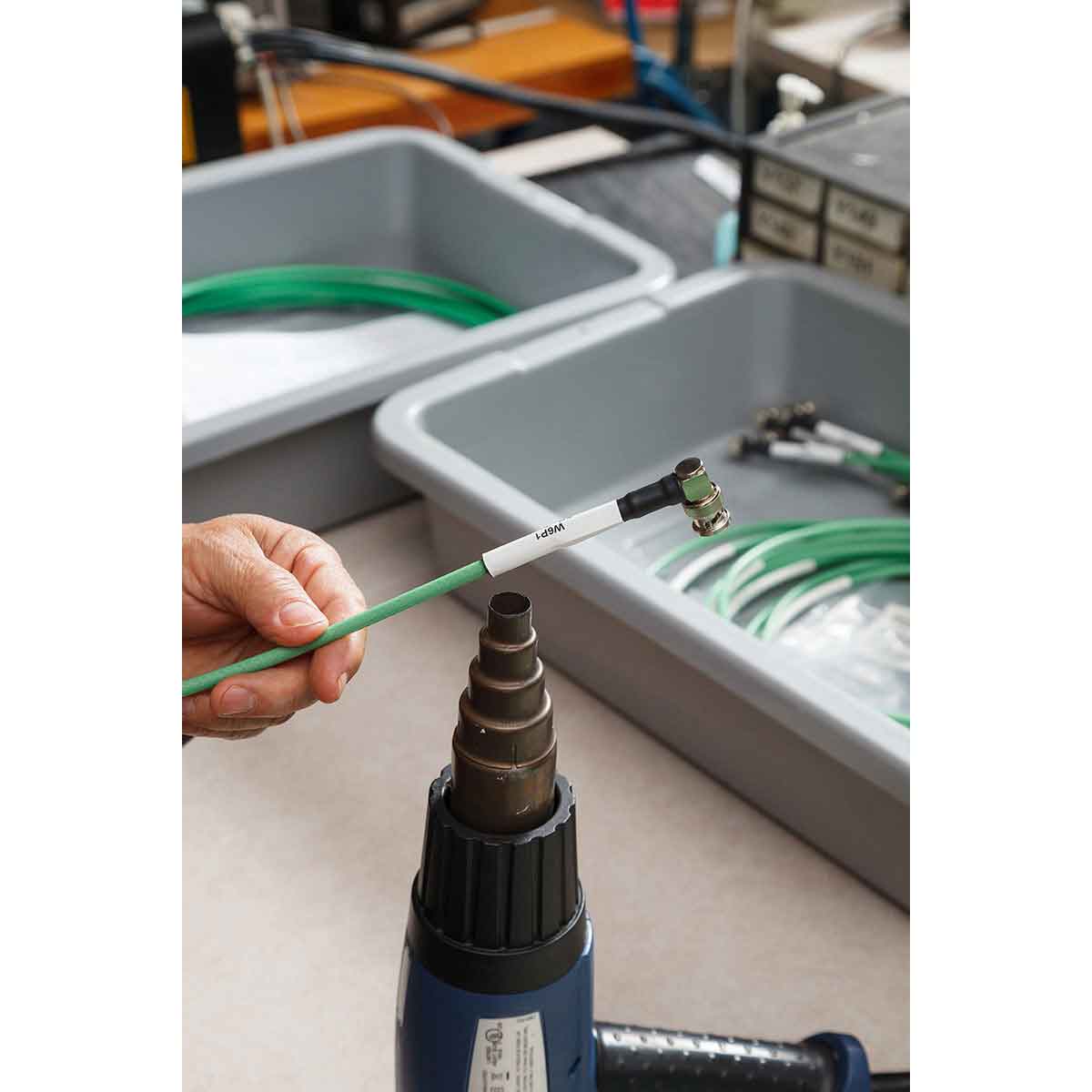

White Heat Shrinkable Label 1.00" W x 1.25" H (25.4mm x 31.8mm); Cable O.D. 0.38" ~ 0.70" (9.5mm ~ 17.8mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

SLEEVE, 0.75 IN DIA X 0.5 IN W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Label Size [Max] [diameter]	Label Size [Max] [diameter]	Label Size [x]	Label Size [Min] [diameter]	Label Size [y]	Label Size [Min] [diameter]	Label Size [y]	Label Size [x]	Label Type	Material	Label Size [diameter]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [Min]
BRADY 2HX-750-2-BK-4	-40 °C	120 °C	Black	17.8 mm	0.7 "	0.5 "	9.5 mm	31.8 mm	0.38 "	1.25 "	12.7 mm	Heat Shrinkable	Polyolefin (PO)
BRADY 2HX-750-2-WT-3	-40 °C	120 °C	White			0.67 in		1.25 "		31.8 mm	17 mm	Heat Shrinkable	Polyolefin (PO)	0.38 in, 0.7 in, 9.5 mm, 17.8 mm
BRADY 2HX-750-2-WT-J-3	-40 °C	120 °C	White			0.67 in		1.25 "		31.8 mm	17 mm	Heat Shrinkable	Polyolefin (PO)	0.38 in, 0.7 in, 9.5 mm, 17.8 mm
BRADY 2HX-750-2-YL-J-2	-40 °C	120 °C	Yellow			1 in		1.25 "		31.8 mm	25.4 mm	Heat Shrinkable	Polyolefin (PO)		9.5 mm	17.8 mm	0.7 "	0.38 "
BRADY 2HX-750-2-BK	-40 °C	120 °C	Black							1.25 ", 31.8 mm	50.8 mm	Heat Shrinkable	Polyolefin (PO)		0.38 in, 9.5 mm	0.7 in, 17.8 mm
BRADY 2HX-750-2-WT-2
BRADY 2HX-750-2-WT-SC	-40 °C	120 °C	White							1.25 ", 31.8 mm	50.8 mm	Heat Shrinkable	Polyolefin (PO)		0.38 in, 9.5 mm	0.7 in, 17.8 mm
BRADY 2HX-750-2.3-WT	-40 °C	120 °C	White							1.25 ", 31.8 mm	50.8 mm	Heat Shrinkable	Polyolefin (PO)		0.38 in, 9.5 mm	0.7 in, 17.8 mm
BRADY 2HX-750-2.3-YL	-55 °C	135 °C	Yellow							1.25 ", 31.8 mm	50.8 mm	Heat Shrinkable	Polyolefin (PO)		0.38 in, 9.5 mm	0.7 in, 17.8 mm
BRADY 2HX-750-2.3-WT-2	-55 °C	135 °C	White			1 in		1.25 "		31.8 mm	25.4 mm	Heat Shrinkable	Polyolefin (PO)		9.5 mm	17.8 mm	0.7 "	0.38 "
