2-84984-0

Active

TE Connectivity AMP Connectors

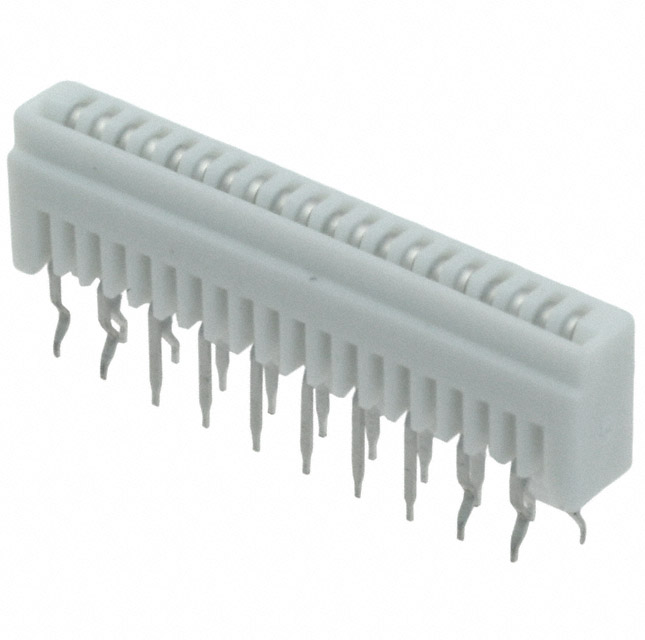

CONN FFC FPC VERT 20POS 1MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-84984-0

Active

TE Connectivity AMP Connectors

CONN FFC FPC VERT 20POS 1MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.02
		21	$ 0.96
		42	$ 0.92
		63	$ 0.91
		105	$ 0.82
		252	$ 0.80
		504	$ 0.78

Description

General part information

84984 Series

20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-84984-0	84984 Series

Cable End Type	Straight	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided	Contacts, Vertical - 1 Sided
Contact Finish	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Housing Color	White	White
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole	Through Hole
Number of Positions	20	6 - 29
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination	Kinked Pin	Kinked Pin
Voltage Rating	125 VDC	125 VDC

84984 Series

CONN FFC FPC VERT 8POS 1MM PCB

Part	Connector/Contact Type	Pitch [x]	Pitch [x]	Housing Color	Mounting Type	Cable End Type	Contact Material	Number of Positions	Voltage Rating	Housing Material	Contact Finish	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	FFC, FCB Thickness
TE Connectivity AMP Connectors 84984-8	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	8	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 2-84984-6	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	26	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 1-84984-0	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	10	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 2-84984-0	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	20	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 1-84984-4	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	14	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 2-84984-4	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	24	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 2-84984-9	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	29	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
TE Connectivity AMP Connectors 84984-6	Contacts, Vertical - 1 Sided	0.039 in	1 mm	White	Through Hole	Straight	Phosphor Bronze	6	125 VDC	Polybutylene Terephthalate (PBT), Glass Filled	Tin	FFC, FPC	85 °C	-20 C	Kinked Pin	0.3 mm
