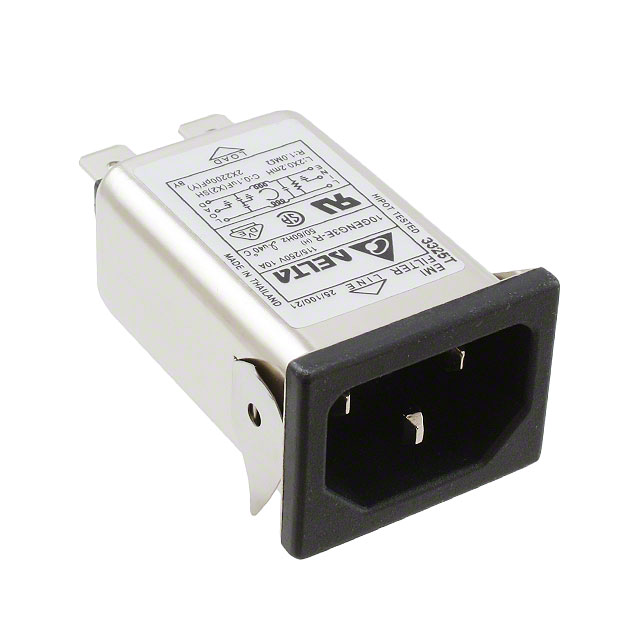

10GENG3E

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	210	$ 7.23

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	10GENG3E	10GENG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	10 A	10 A
Features	-	Bleed Resistor, Mounting Clip
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	-	29.5 mm
Panel Cutout Dimensions	-	21.5 mm
Panel Thickness [Max]	0.063 in	0.063 in
Panel Thickness [Max]	1.6 mm	1.6 mm
Panel Thickness [Min]	0.81 mm	0.81 mm
Panel Thickness [Min]	0.032 in	0.032 in
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Mounting Type	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Approval Agency	Connector Style	Termination	Current Rating - Appliance Inlet	Features	Current Rating - Filter	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Delta Electronics 10GENG3E-R	Filtered (EMI, RFI) - Commercial	115 VAC	250 VAC	Panel Mount, Snap-In	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA, UL, VDE	IEC 320-C14	Quick Connect	10 A	Bleed Resistor	10 A	Male Blades, Receptacle
Delta Electronics 10GENG3E-R(H)	Filtered (EMI, RFI) - Commercial	115 VAC	250 VAC	Panel Mount, Snap-In	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA, UL, VDE	IEC 320-C14	Quick Connect	10 A	Bleed Resistor, Mounting Clip	10 A	Male Blades, Receptacle	29.5 mm	21.5 mm
Delta Electronics 10GENG3E	Filtered (EMI, RFI) - Commercial	115 VAC	250 VAC	Panel Mount, Snap-In	0.81 mm	0.032 in	0.063 in	1.6 mm	CSA, UL, VDE	IEC 320-C14	Quick Connect	10 A		10 A	Male Blades, Receptacle
