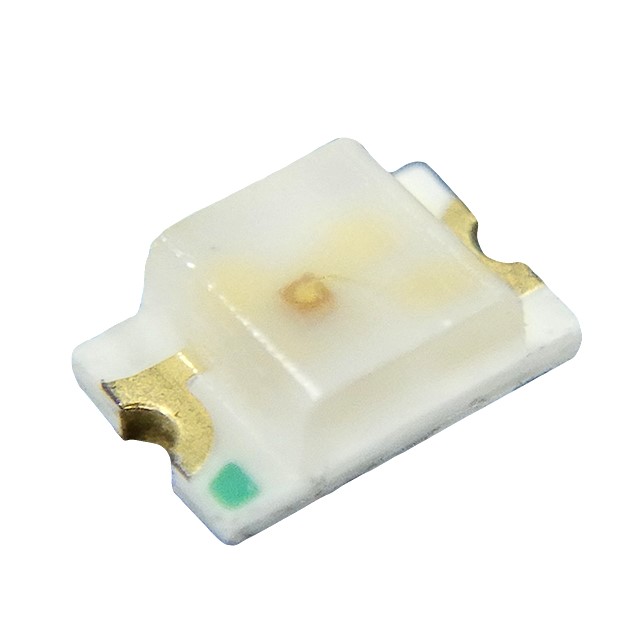

QBLP631-YG1-2943

Active

QT Brightek (QTB)

0805 LED RED 570NM DOMINANT, 565

Search across all available documentation for this part.

Active

QT Brightek (QTB)

0805 LED RED 570NM DOMINANT, 565

Technical Specifications

Parameters and characteristics commom to parts in this series

LED GREEN CLEAR 0805 SMD

Part	Color	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Lens Color	Current - Test	Supplier Device Package	Configuration	Mounting Type	Package / Case	Viewing Angle	Lens Size [x]	Lens Size [y]	Lens Style	Lens Transparency	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Wavelength - Peak
QT Brightek (QTB) QBLP631-AG1	Green	2 mm	1.25 mm	63 mcd	Colorless	20 mA	0805	Standard	Surface Mount	0805	140 °	1.3 mm	1.25 mm	Rectangle with Flat Top	Clear	0.9 mm	2 V	570 nm
QT Brightek (QTB) QBLP631-S	Red	2 mm	1.25 mm	50 mcd	Colorless	20 mA	0805	Standard	Surface Mount	0805		1.3 mm	1.25 mm	Rectangle with Flat Top	Clear	0.9 mm	2 V	640 nm
QT Brightek (QTB) QBLP631-S3	Red	2 mm	1.25 mm	25 mcd	Colorless	20 mA	0805	Standard	Surface Mount	0805	140 °	1.3 mm	1.25 mm	Rectangle with Flat Top	Clear	0.9 mm	1.9 V	640 nm	660 nm
QT Brightek (QTB) QBLP631-R	Red	2 mm	1.25 mm	100 mcd	Colorless	20 mA	0805	Standard	Surface Mount	0805	140 °	1.3 mm	1.25 mm	Rectangle with Flat Top	Clear	0.9 mm	2 V	625 nm
QT Brightek (QTB) QBLP631-YG1-2943	Green	2 mm	1.25 mm	15 mcd	White	20 mA	0805	Standard	Surface Mount	0805	140 °	1.3 mm	1.25 mm	Rectangle with Flat Top	Diffused	0.9 mm	2 V	570 nm	565 nm
QT Brightek (QTB) QBLP631-IW5-2897	White	2 mm	1.25 mm	240 mcd	Yellow	5 mA	0805	Standard	Surface Mount	0805	140 °	1.3 mm	1.25 mm	Rectangle with Flat Top	Diffused	0.9 mm	2.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 570nm LED Indication - Discrete 2V 0805 (2012 Metric)
