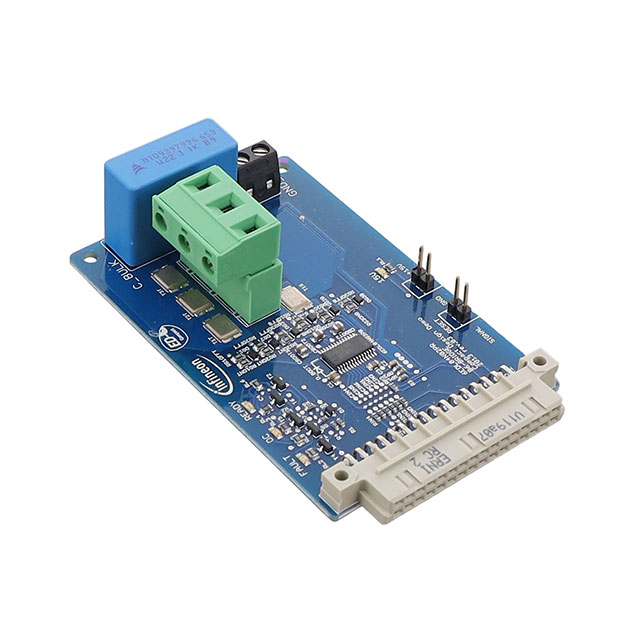

EVAL6EDL04N02PRTOBO1
ActiveInfineon Technologies
EVALUATION BOARD FOR 6EDL04N02PR FULL BRIDGE 3 PHASE GATE DRIVER IC WITH LS-SOI TECHNOLOGY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsOperating Instructions EN
EVAL6EDL04N02PRTOBO1
ActiveInfineon Technologies
EVALUATION BOARD FOR 6EDL04N02PR FULL BRIDGE 3 PHASE GATE DRIVER IC WITH LS-SOI TECHNOLOGY
Deep-Dive with AI
DocumentsOperating Instructions EN
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL6EDL04N02PRTOBO1 |
|---|---|
| Contents | Board(s) |
| Function | Gate Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | 6EDL04N02PR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL6EDL04 Series
This gate driver evaluation board was developed to show the functionalities and key features of the6EDL04N02PRFull bridge 3-Phasegate driver ICwith LS-SOI technology to control power devices likeMOS-transistorsor 180 VIGBTs.
Documents
Technical documentation and resources
