4840-6000-CP

Active

3M (TC)

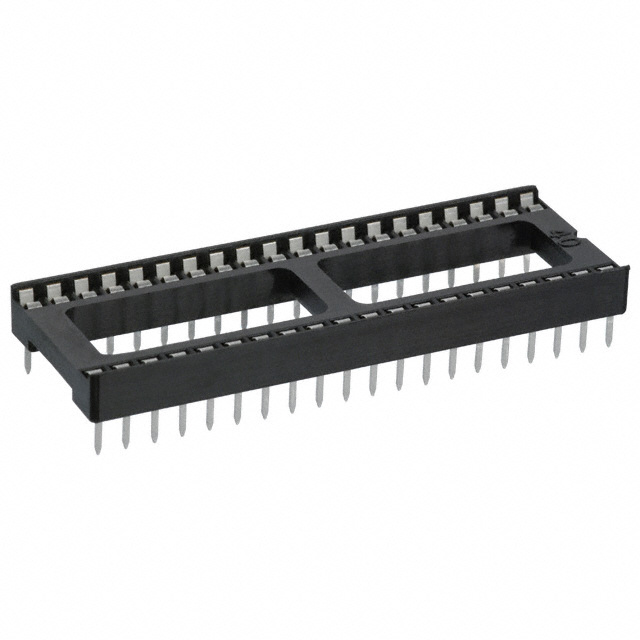

IC & COMPONENT SOCKET, 40 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4840-6000-CP

Active

3M (TC)

IC & COMPONENT SOCKET, 40 CONTACTS, DIP SOCKET, 2.54 MM, 4800 SERIES, 15.24 MM, PHOSPHOR BRONZE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4840-6000-CP

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	35.4 µin
Contact Finish Thickness - Mating	0.9 µm
Contact Finish Thickness - Post	35 µin
Contact Finish Thickness - Post	0.9 µm
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Current Rating (Amps)	1 A
Features	Open Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	DIP
Type	0.6 in
Type	15.24 mm

4840 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Material - Post	Features	Type	Type	Type	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Contact Finish - Post	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination
3M (TC) 4840-6000-CP	35.4 µin	0.9 µm	1 A	Phosphor Bronze	Open Frame	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	UL94 V-0	35 µin	0.9 µm	Phosphor Bronze	Tin	40	20	2	-25 °C	85 °C	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.22
		10	$ 1.03
		30	$ 0.99
		50	$ 0.97
		100	$ 0.93
		250	$ 0.84
		500	$ 0.76
		1000	$ 0.67
		2500	$ 0.61
Newark	Each	1	$ 1.25
		10	$ 1.11
		25	$ 1.04
		50	$ 0.99
		100	$ 0.95
		250	$ 0.87
		500	$ 0.78
		1000	$ 0.69

Description

General part information

4840 Series

The 4840-6000-CP is a 40-way stamped and formed Dual-wipe DIP Socket with matte tin-plated phosphor bronze contacts. The 4800 series socket has polyester glass filled insulation, 0.6-inch row spacing and straight tail. Dual leaf, high compression contact provides reliable termination.
