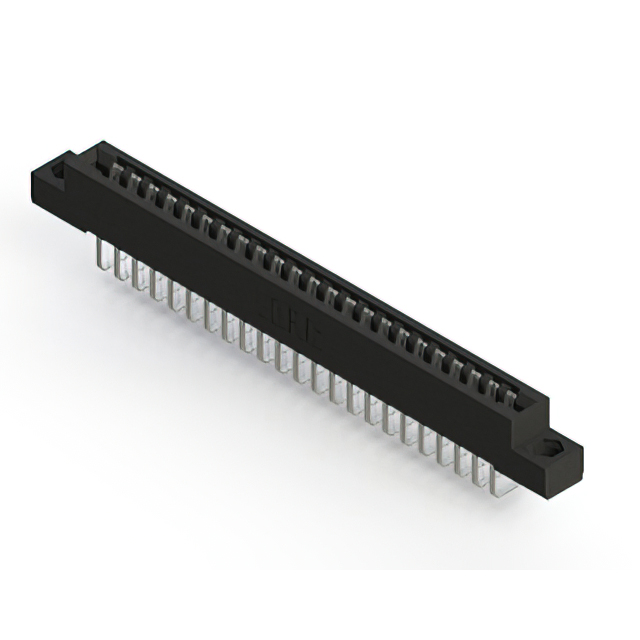

857-023-458-104

Active

EDAC Inc.

CONN EDGE SGL FML 23POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-023-458-104

Active

EDAC Inc.

CONN EDGE SGL FML 23POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-023-458-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

857-023 Series

...

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Pitch [x]	Pitch [x]	Read Out	Mounting Type	Termination	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows	Color	Number of Rows	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Card Type	Gender	Flange Feature	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 857-023-525-108	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Single	Through Hole	Solder	23	10 Áin	0.25 Ám	Gold	1	Black	1	Copper Alloy	125 °C	-40 °C	23	Non Specified - Single Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-023-527-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Single	Through Hole	Solder	23	10 Áin	0.25 Ám	Gold	1	Black	1	Copper Alloy	125 °C	-40 °C	23	Non Specified - Single Edge	Female	Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-023-441-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Dual	Through Hole	Wire Wrap	23			Tin	1	Black	2	Copper Alloy	125 °C	-40 °C	46	Non Specified - Dual Edge	Female		Polyphenylene Sulfide (PPS)
EDAC Inc. 857-023-457-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Dual	Through Hole Right Angle	Solder	23			Tin	1	Black	2	Copper Alloy	125 °C	-40 °C	46	Non Specified - Dual Edge	Female	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 in
EDAC Inc. 857-023-554-112	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Dual	Through Hole Right Angle	Solder	23	10 Áin	0.25 Ám	Gold	1	Black	2	Copper Alloy	125 °C	-40 °C	46	Non Specified - Dual Edge	Female	Side Mount Opening Unthreaded	Polyphenylene Sulfide (PPS)			3.25 mm	0.128 in
EDAC Inc. 857-023-454-107	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Dual	Through Hole Right Angle	Solder	23			Tin	1	Black	2	Copper Alloy	125 °C	-40 °C	46	Non Specified - Dual Edge	Female	Flush Mount M3 Threaded Insert Top Opening	Polyphenylene Sulfide (PPS)
EDAC Inc. 857-023-427-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Single	Through Hole	Solder	23			Tin	1	Black	1	Copper Alloy	125 °C	-40 °C	23	Non Specified - Single Edge	Female		Polyphenylene Sulfide (PPS)
EDAC Inc. 857-023-458-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Single	Through Hole Right Angle	Solder	23			Tin	1	Black	1	Copper Alloy	125 °C	-40 °C	23	Non Specified - Single Edge	Female	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 in
EDAC Inc. 857-023-559-104	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Single	Through Hole Right Angle	Solder	23	10 Áin	0.25 Ám	Gold	1	Black	1	Copper Alloy	125 °C	-40 °C	23	Non Specified - Single Edge	Female	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	3.96 mm	0.156 in
EDAC Inc. 857-023-541-102	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	0.156 in	3.96 mm	Dual	Through Hole	Wire Wrap	23	10 Áin	0.25 Ám	Gold	1	Black	2	Copper Alloy	125 °C	-40 °C	46	Non Specified - Dual Edge	Female	Flush Mount Top Opening Unthreaded	Polyphenylene Sulfide (PPS)	3.25 mm	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 96.02
Newark	Each	1	$ 115.23
		100	$ 68.73
		250	$ 61.36
		500	$ 55.77
		1000	$ 46.00

Description

General part information

857-023 Series

23 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
