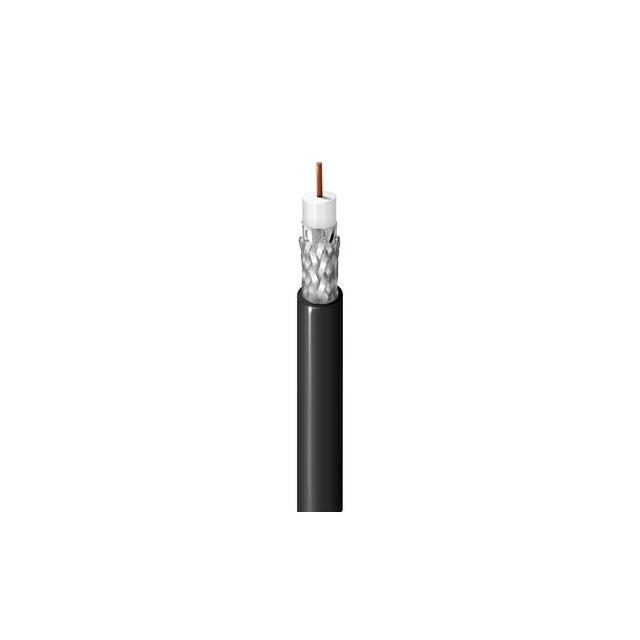

1694A 0061000

Active

Belden Inc.

#18 PE/GIFHDPE SH FR PVC

1694A 0061000

Active

Belden Inc.

#18 PE/GIFHDPE SH FR PVC

Description Specifications Series Pricing CAD Documents

Description

General part information

1694A Series

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m)

Technical Specifications

Parameters and characteristics for this part

Specification	1694A 0061000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter	0.18 in
Dielectric Material	Polyethylene (PE)
Features	UV Resistant
Jacket (Insulation) Diameter	0.274 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length	1000 ft
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-30 °C
Shield Coverage	100%, 95%
Shield Material	Aluminum, Tinned, Copper, Polyester
Shield Type	Braid, Foil
Velocity of Propagation (VoP)	82 %
Wire Gauge	18 AWG

1694A Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Material	Dielectric Material	Velocity of Propagation (VoP)	Shield Material	Shield Coverage	Dielectric Diameter	Cable Group	Features	Wire Gauge	Jacket (Insulation) Material	Conductor Strand	Jacket Color	Shield Type	Jacket (Insulation) Diameter	Length	Cable Type
Belden Inc. 1694A 0021000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Red	Braid Foil	0.274 in	1000 ft	Coaxial
Belden Inc. 1694A 009N1000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	White	Braid Foil	0.274 in	1000 ft	Coaxial
Belden Inc. 1694A 0075000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Violet	Braid Foil	0.274 in	5000 ft	Coaxial
Belden Inc. 1694A 0025000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Red	Braid Foil	0.274 in	5000 ft	Coaxial
Belden Inc. 1694A 004N1000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Yellow	Braid Foil	0.274 in	1000 ft	Coaxial
Belden Inc. 1694A 0015000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Brown	Braid Foil	0.274 in	5000 ft	Coaxial
Belden Inc. 1694A N3U5000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Green	Braid Foil	0.274 in	5000 ft	Coaxial
Belden Inc. 1694A 0091000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	White	Braid Foil	0.274 in	1000 ft	Coaxial
Belden Inc. 1694A 0061000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Blue	Braid Foil	0.274 in	1000 ft	Coaxial
Belden Inc. 1694A 0081000	-30 °C	75 °C	Bare Copper	Polyethylene (PE)	82 %	Aluminum Copper Polyester Tinned	100% 95%	0.18 in	RG-6	UV Resistant	18 AWG	Poly-Vinyl Chloride (PVC)	Solid	Gray	Braid Foil	0.274 in	1000 ft	Coaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

Broadcast and Professional AV Solutions

1694A 0061000 | Datasheet
